As a developer with 20 years of experience in metrology-grade 3D scanning technology, SHINING 3D has consistently focused on providing high-precision 3D measurement and full-size inspection solutions, with accuracy ranging from 4 to 50 microns. These solutions support professional users in industrial and medical applications, including civil aviation, automotive, machinery, energy, electronics, and dentistry.

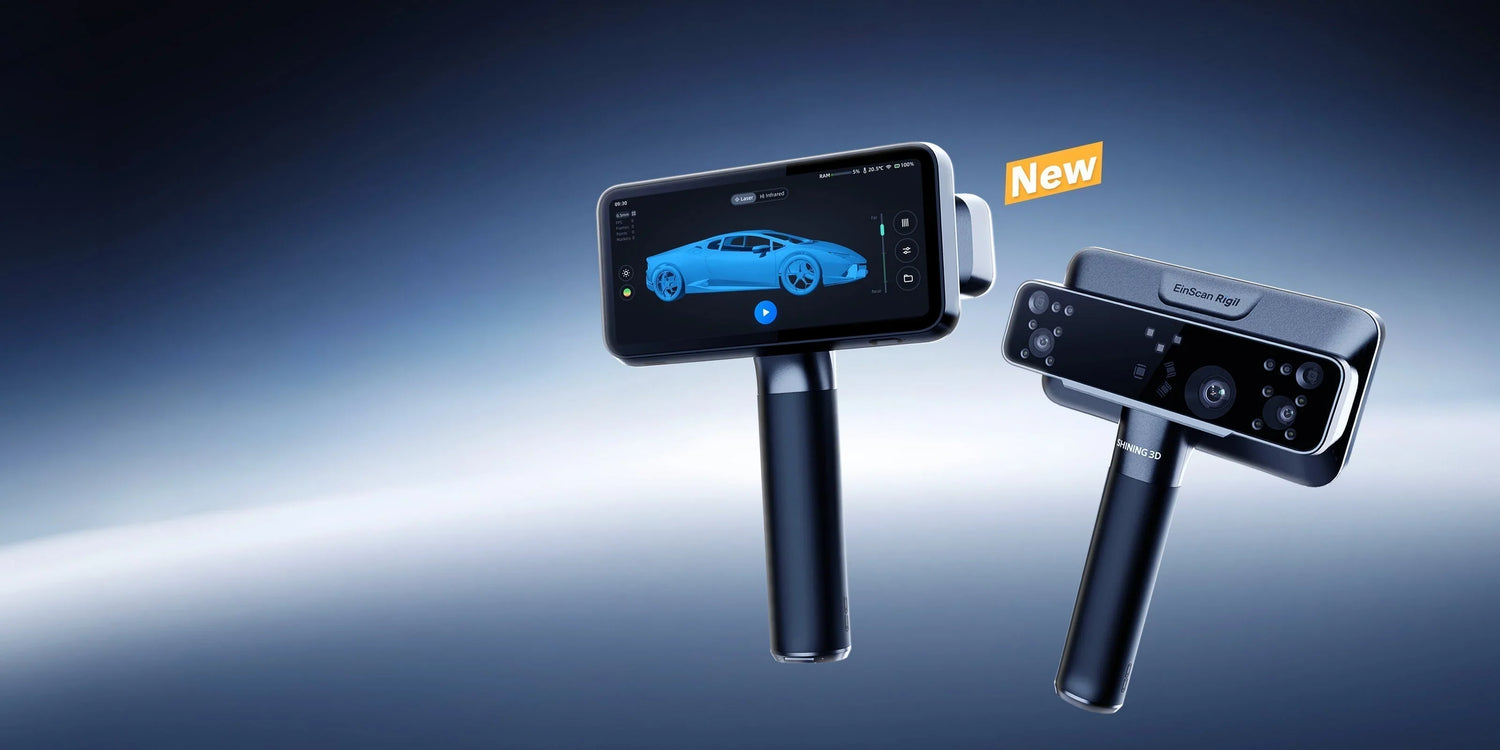

As a key contributor in the 3D digital technology field, SHINING 3D is committed to making high-end metrology-grade 3D scanning technology accessible to the prosumers. EinScan Rigil was born out of the continuous pursuit of high-quality 3D scanning solutions and ongoing attention to customer needs. It's the world’s first Tri-Mode 3D scanner with built-in computing, wireless solution and hybrid light technology. EinScan Rigil offers a fully integrated 3D scanning wireless workflow with triple work modes that effectively eliminates the traditional compromise between computing power and flexibility.



EinScan Rigil provides high quality models with up to 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05 mm. It has three types of light sources — 19+19 crossed blue laser lines, 7 parallel blue laser lines, and infrared VCSEL — which paired with two separate groups of tailored cameras to ensure versatile performance and peak efficiency for objects of wide-range of sizes and surface type.



EinScan Rigil is designed to comprehensively satisfy the 3D modeling needs of the automotive aftermarket prosumers. As a truly universal 3D scanner, EinScan Rigil is well suited to meet the diverse demands of the automotive modification industry. It significantly enhances efficiency in generating high-quality 3D models, combining fast scanning capabilities, streamlined professional workflows, lightweight computing solutions and rich data editing functions.



Why EinScan Rigil? Key Advantages Redefining Industry Standards



Triple Scan Modes: One Device, Three Professional Solutions



2 Blue Laser Scan Modes

19+19 crossed laser lines for high speed scanning, delivering  top-tier efficiency and flexibility. 7 parallel laser lines for detailed scanning, providing consistent results with fine geometric details.

Above 2 laser modes can switch during scanning process, and respective data merged together, to achieve efficiency and detail in one scanning project.



IR Rapid Scan Mode

Utilize VCSEL infrared technology for marker-free scanning, adapting to rich tasks in diversified working environment. It delivers high efficiency and wide coverage for medium to large objects, with eye-safe portrait scanning capabilities.



Triple Work Modes Unlock MAX Performance And Flexibility

As the world’s first Tri-mode laser 3D Scanner, EinScan Rigil offers three operating modes:



Standalone Mode

No need connecting PC, all scanning and processing tasks are completed directly on the hardware, delivering exceptionalportability and ease of use.



Wireless PC Mode

Leveraging built-in Wi-Fi 6, this mode enables seamless wireless scanning and allows connectionto a computer for maximum computing power, optimizing performance for complex tasks.



Wired PC Mode

Connecting to a PC via cable, this mode maintains availability and maximum scan speed and data volume in complex network environments.



Why EinScan Rigil? Key Features Elevate the Scanning Experience



Marker-Free Laser Scanning

Setting up and removing markers often takes a lot of time, in order to easily obtain high quality data, and to better strike a balance between scanning efficiency and quality, marker-free laser scanning has been created.

EinScan Rigil has special feature tracking algorithm, provides a marker-free blue laser scan mode through laser +IR hybrid scan mode, enabling better efficiency than traditional marker based laser scan and better data quality than marker-free lR scan.



Working Efficiently in Sunlight Outdoors

Both Blue Laser and Infrared VCSEL projectors have strong environment light adaptability, which ensure smooth scanning experience under strong sunlight.



5MP Full Color Texture Scanning

EinScan Rigil is equipped with a 5MP high-definition camera that can restore high-quality texture details,allowing designers, engineers and artists to maintain high-fidelity modeling and rendering during the digitizationprocess, providing more precise information for subsequent analysis and creation.



Superior Materials Adaptability with Different Objects

Superior adaptability to scan objects with dark and reflective metal surface without spray.



Powerful Hardware and Software

All-In-One High Quality Hardware

Equipped with 32GB DDR5 RAM, combined with 32GB eMMC+ 1TB SSD ROM, it provides reliable computing space support and data storage guarantee. Powered with 8 core CPU 2.4GHz processor and 6.4''2k AMOLED HD touchscreen, the strong hardware builds the cornerstone of excellent performance. With two 6000mah replaceable batteries, the device can be used freely for a longer time.



Professional and Full-featured Software

EXScan Rigil is a dedicated PC software designed specifically for the EinScan Rigil scanner, covering the full spectrum of advanced professional workflows including scanning, data modification, closed surface generation, model editing, exporting and sharing. When paired with the EinScan Rigil scanner, it delivers a seamless, flexible, and portable scanning experience that combines stability and high-quality results.

Applications





Conclusion

Rigil for Rapid: Marker-free blue laser scanning outperforms traditional marker scanning in efficiency and marker-free IR in quality.



Rigil for Refined: Achieve high quality models with high geometric resolution up to 0.05 mm and 5MP high-definition camera for high-quality texture details.



Rigil for Reliable: 19+19 crossed lines for speed, 7 parallel lines for intricate details, while VCESL infrared for wider range and large scale with high stability.



EinScan Rigil is a 3D scanner with integrated wireless workflow and multiple work modes, which efficiently generates high-quality 3D models for users in different environments for complex objects made of various materials, and truly meets the needs of professional consumers in the automotive aftermarket and other professional fields.
