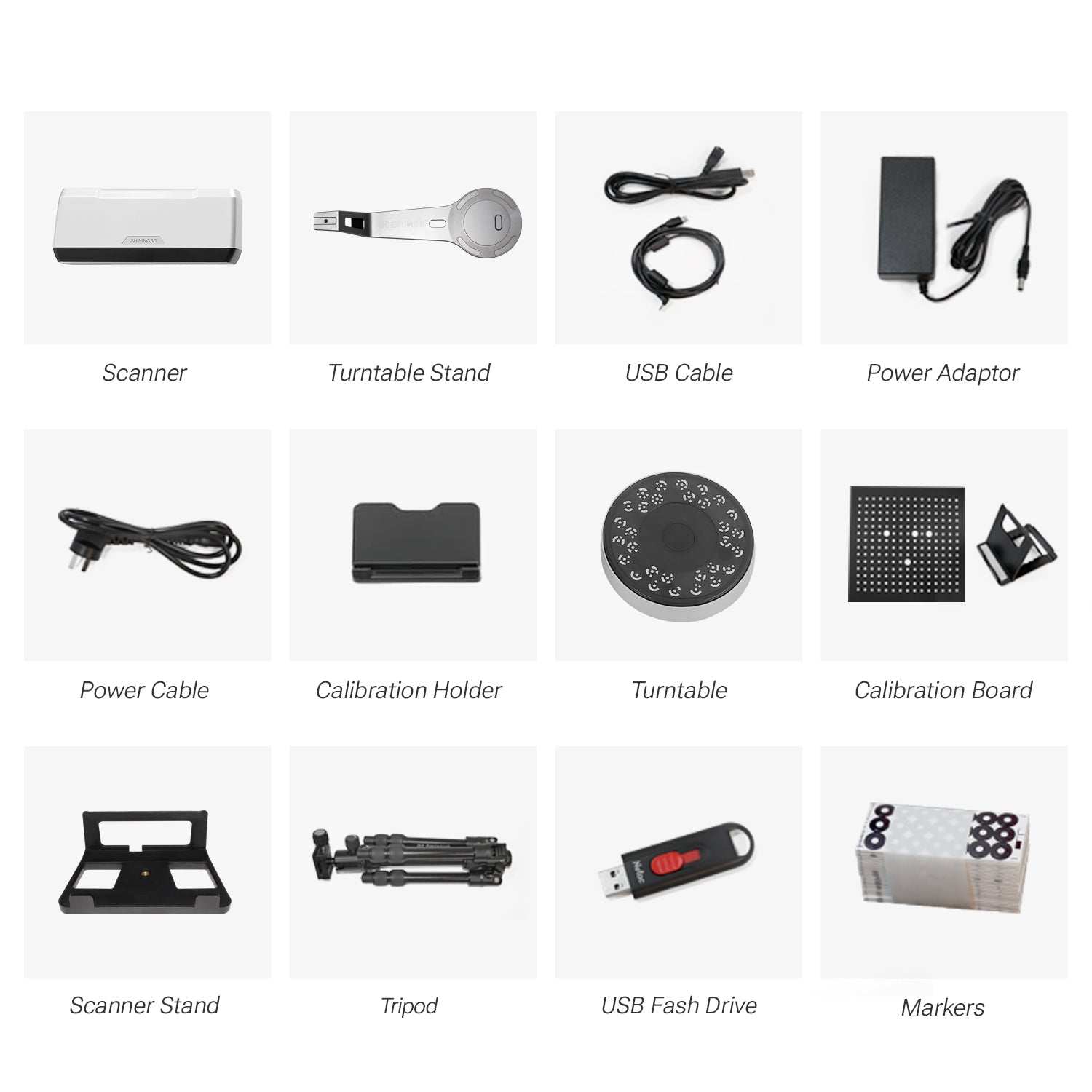

- What's In The Box
- Specifications
- 3D Data Gallery
- How to Use
- FAQs
- Reviews

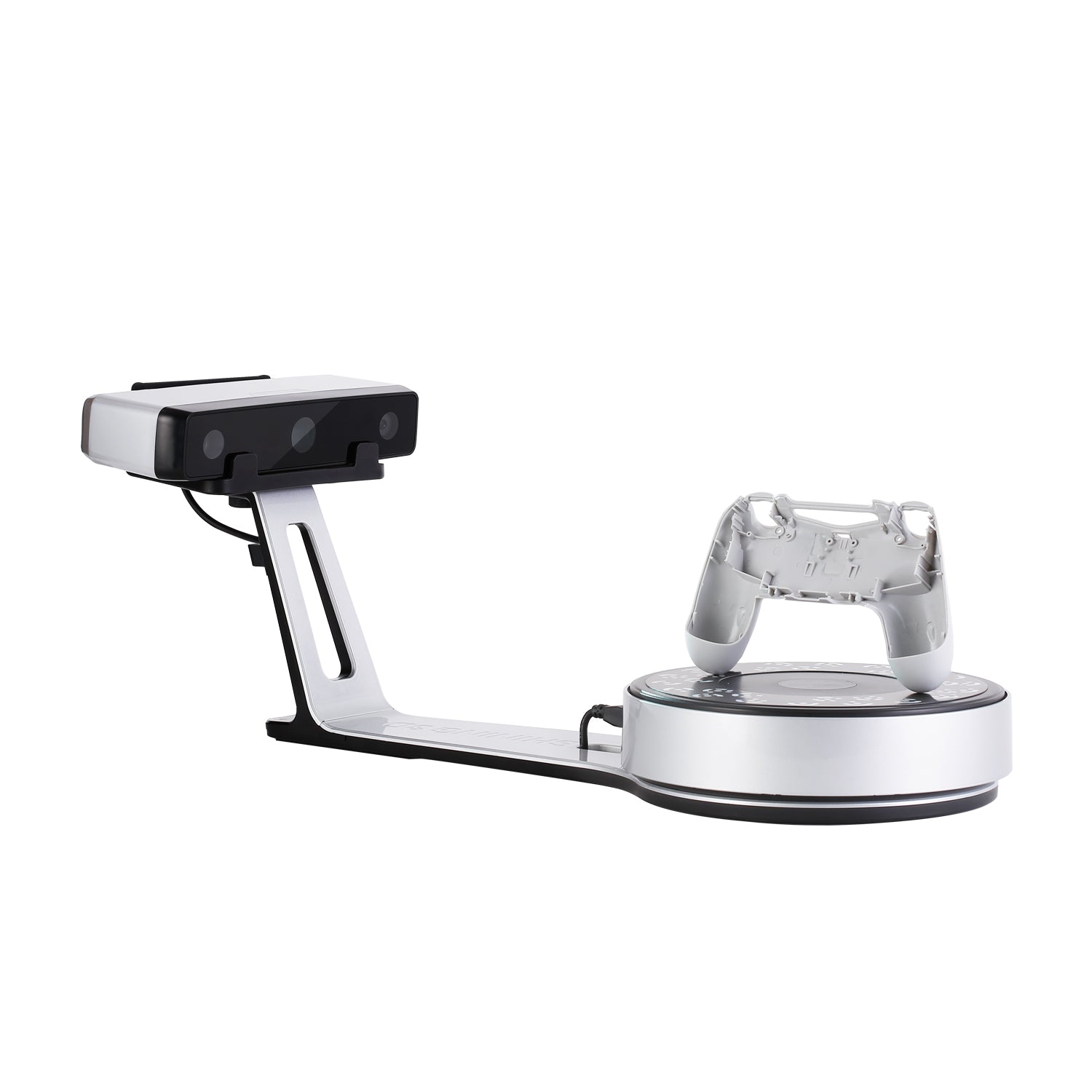

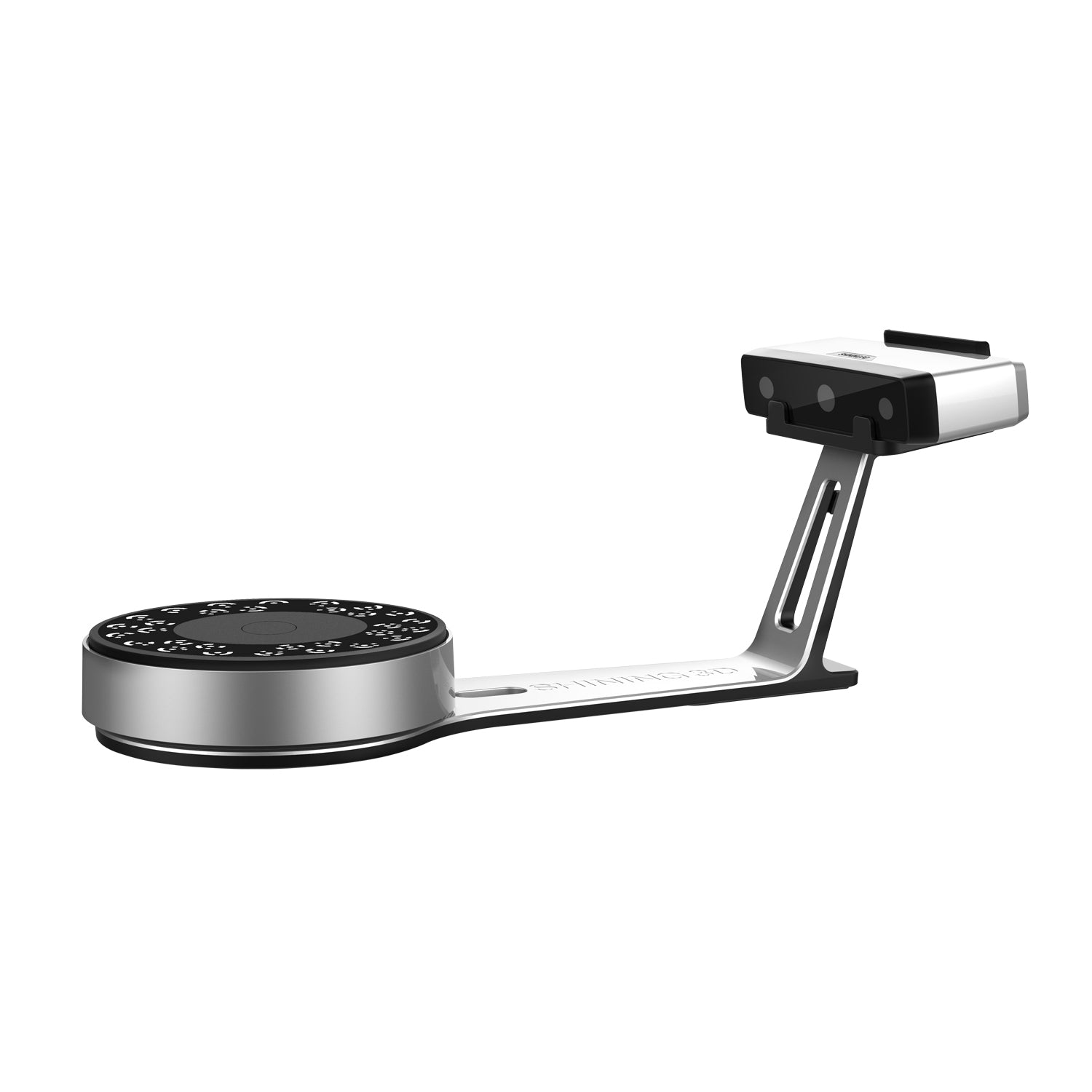

EinScan-SE V2 Desktop 3D-Scanner
EinScan-SE V2 3D-Scanner, ein leistungsstarker Begleiter für Bildung und Hobby
Hochwertige Daten
EinScan-SE V2 ermöglicht mit jedem Scan das Erfassen hochwertiger 3D-Daten.
Großer 3D-Scanbereich
EinScan-SE V2 minimales Scanvolumen: 30 mm x 30 mm x 30 mm
EinScan-SE V2 maximales Scanvolumen: 700 mm x 7000 mm x 700 mm
Umfangreiche Funktionen für die Nachbearbeitung
Die EinScan-SE V2 Software verfügt über Funktionen wie das benutzerfreundliche Füllen von Löchern, Glätten und Schärfen und kann in der Nachbearbeitung die 3D-Daten auch an einem Koordinatensystem neu ausrichten, um einen perfekten Datensatz für nachfolgende Anwendungen bereitzustellen.
Feine Details
Kompatibel mit 3D-Druckern
Automatische Vernetzung für wasserdichte 3D-Daten.
Optimiertes Benutzererlebnis
The expert’s choice for enhanced experience

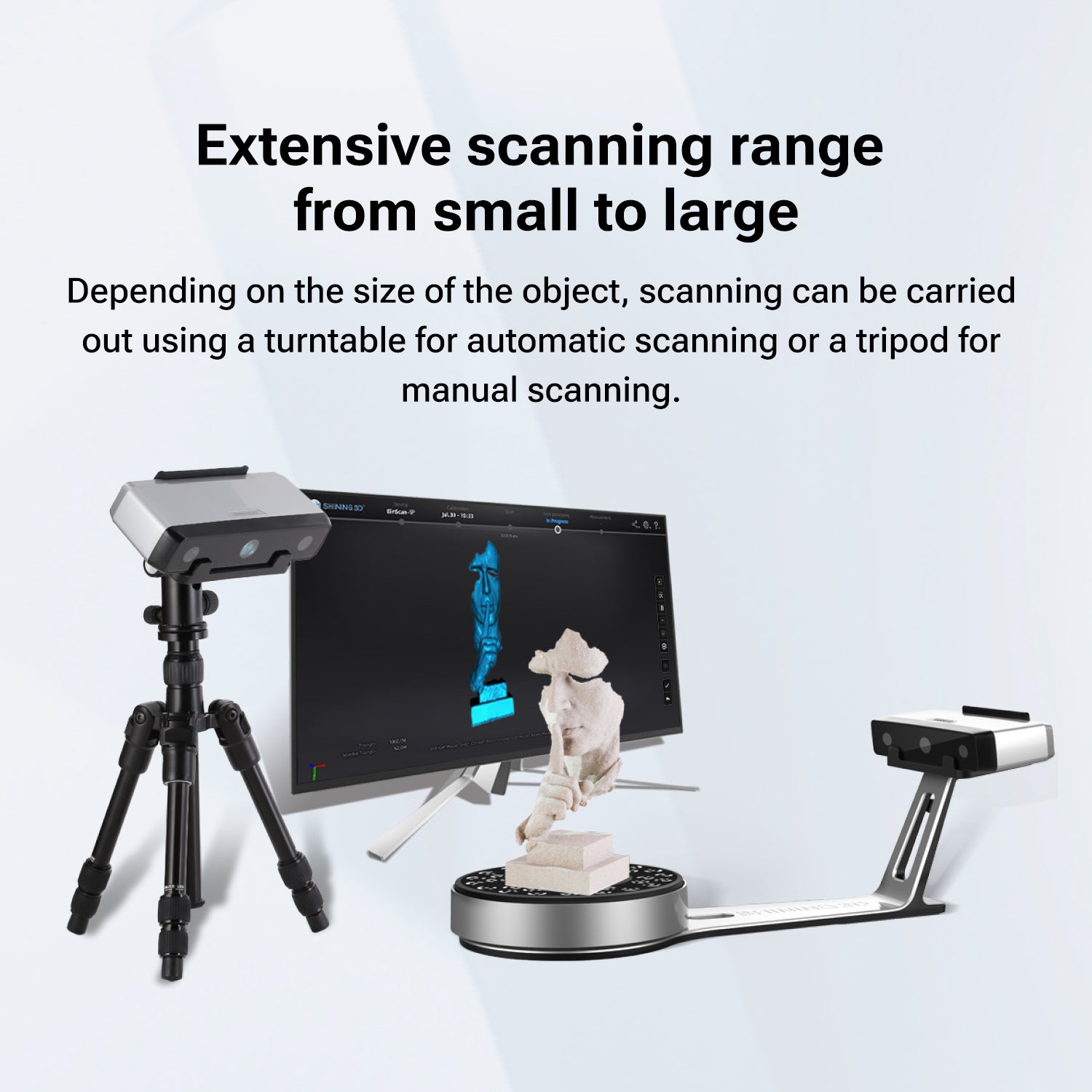

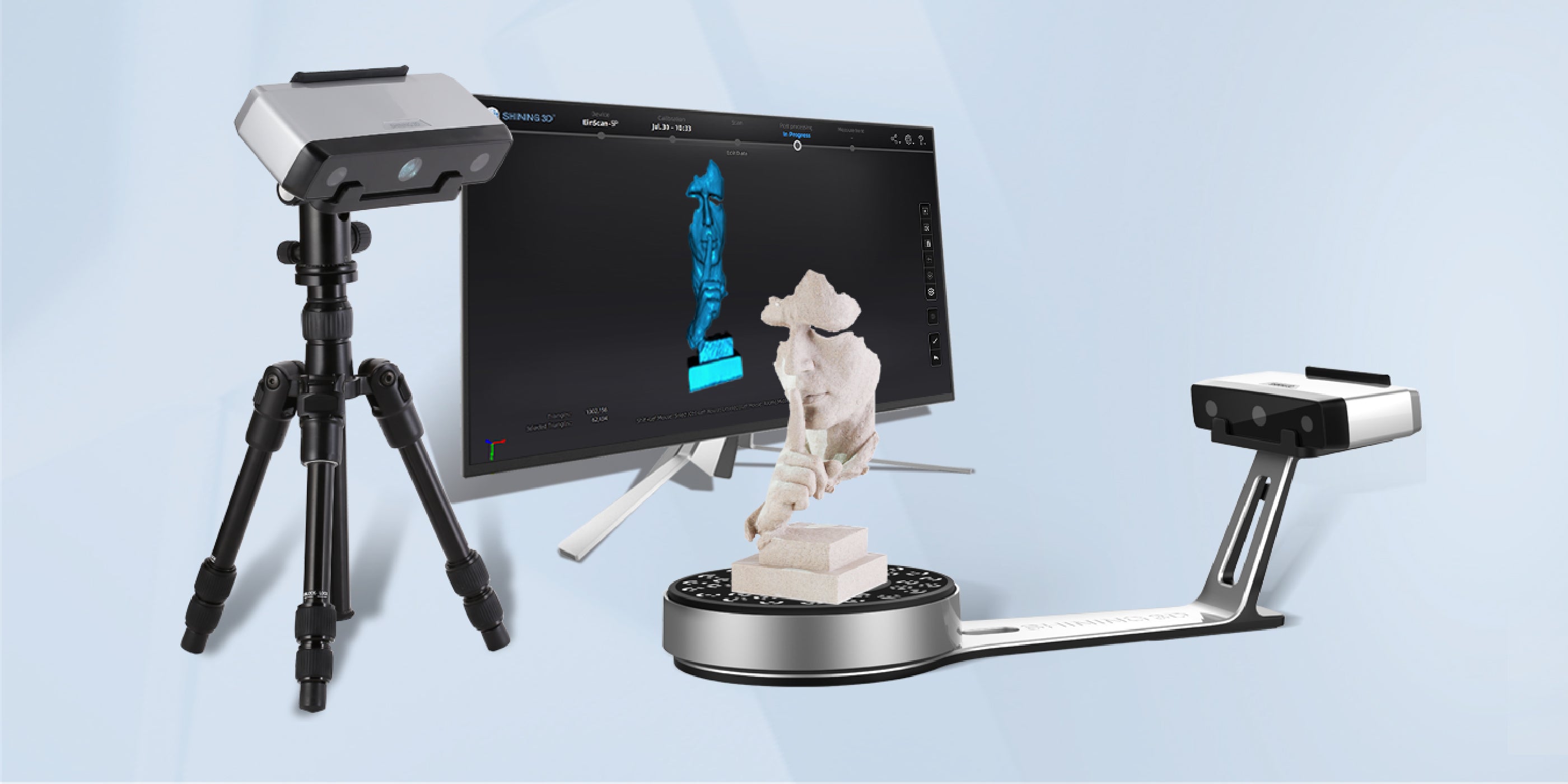

Extensive scanning range from small to large
Depending on the size of the object, scanning can be carried out using a turntable for automatic scanning or a tripod for manual scanning.

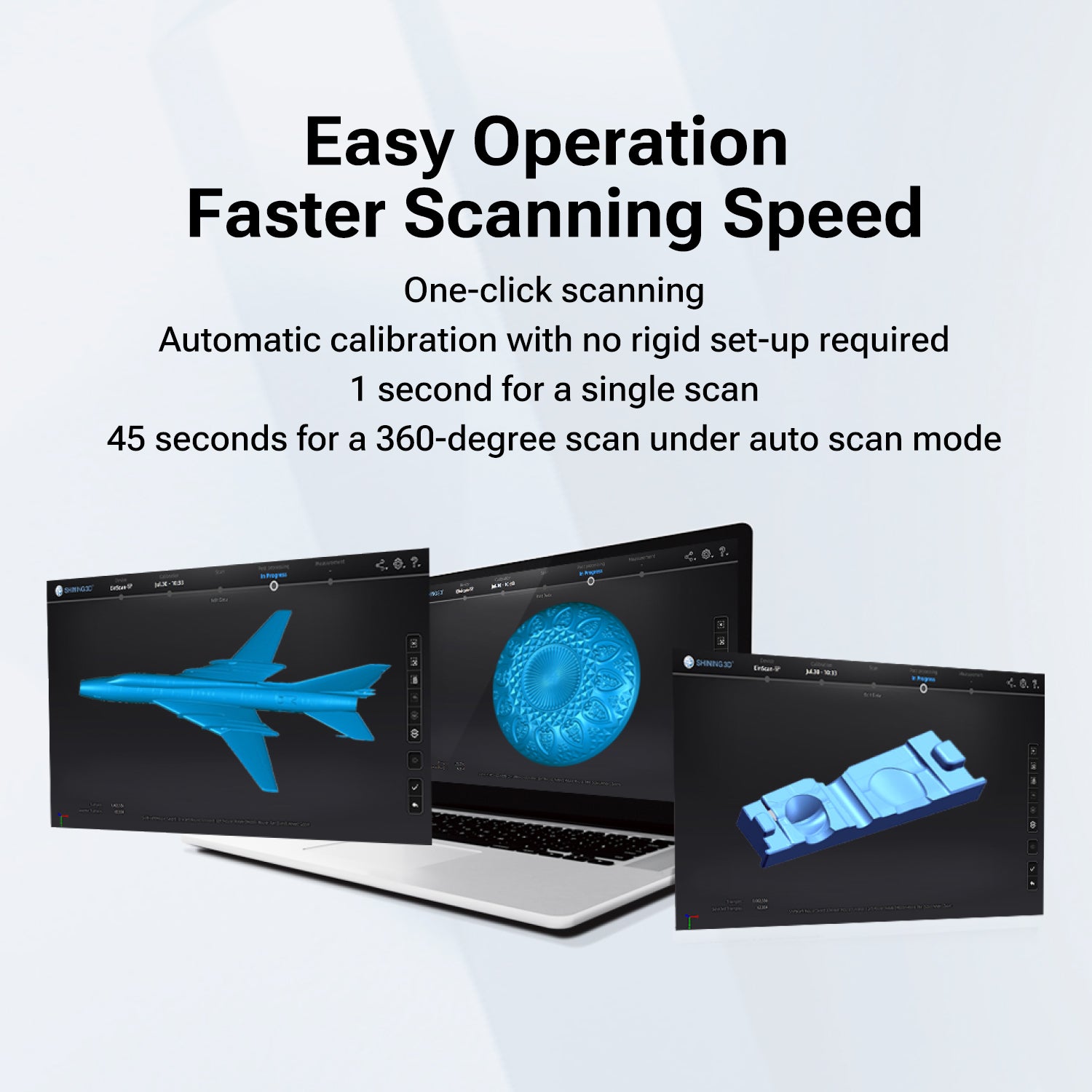

Easy Operation, Faster Scanning Speed
- One-click scanning
- Automatic calibration with no rigid set-up required
- 1 second for a single scan
- 45 seconds for a 360-degree scan under auto scan mode

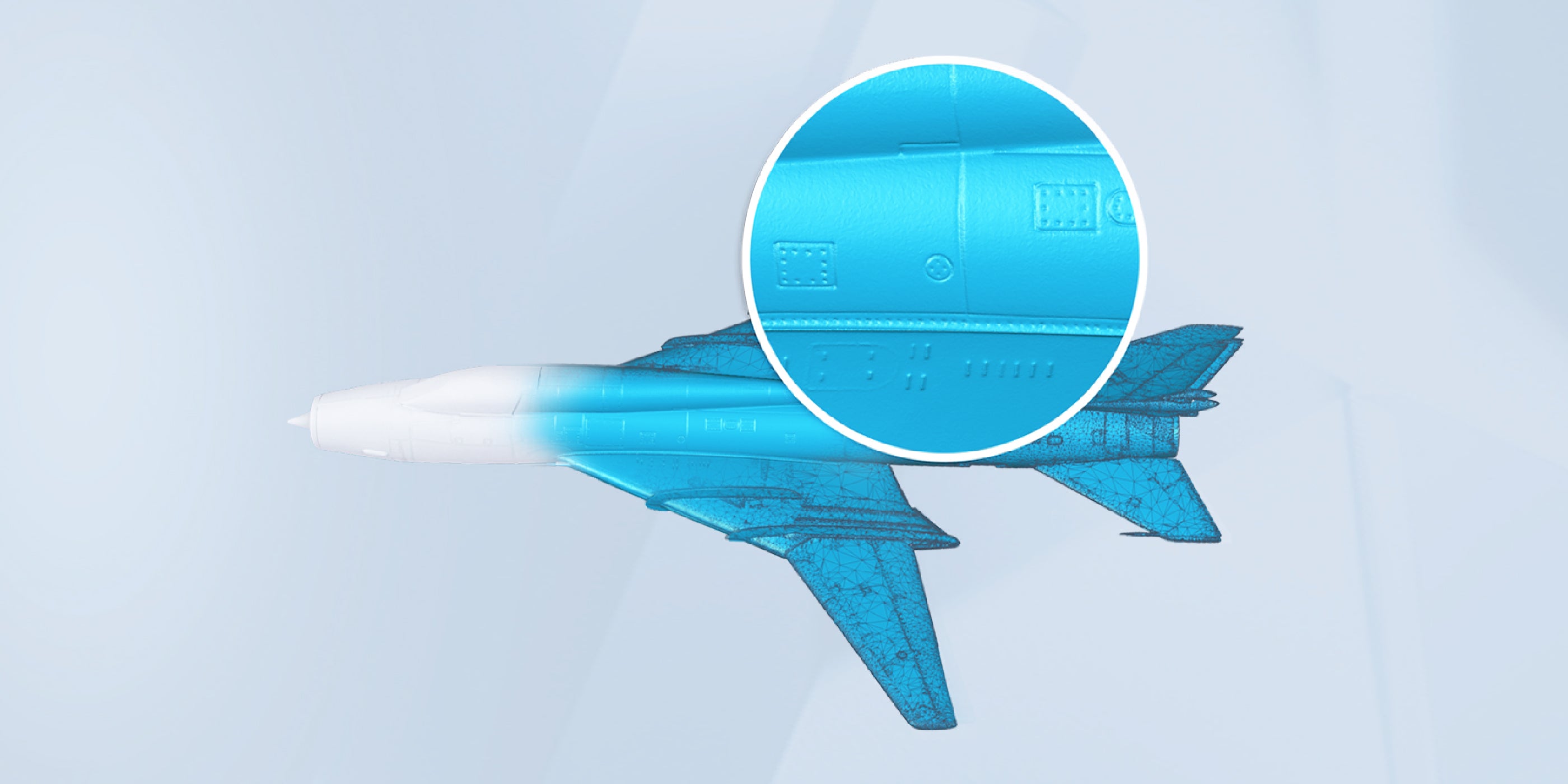

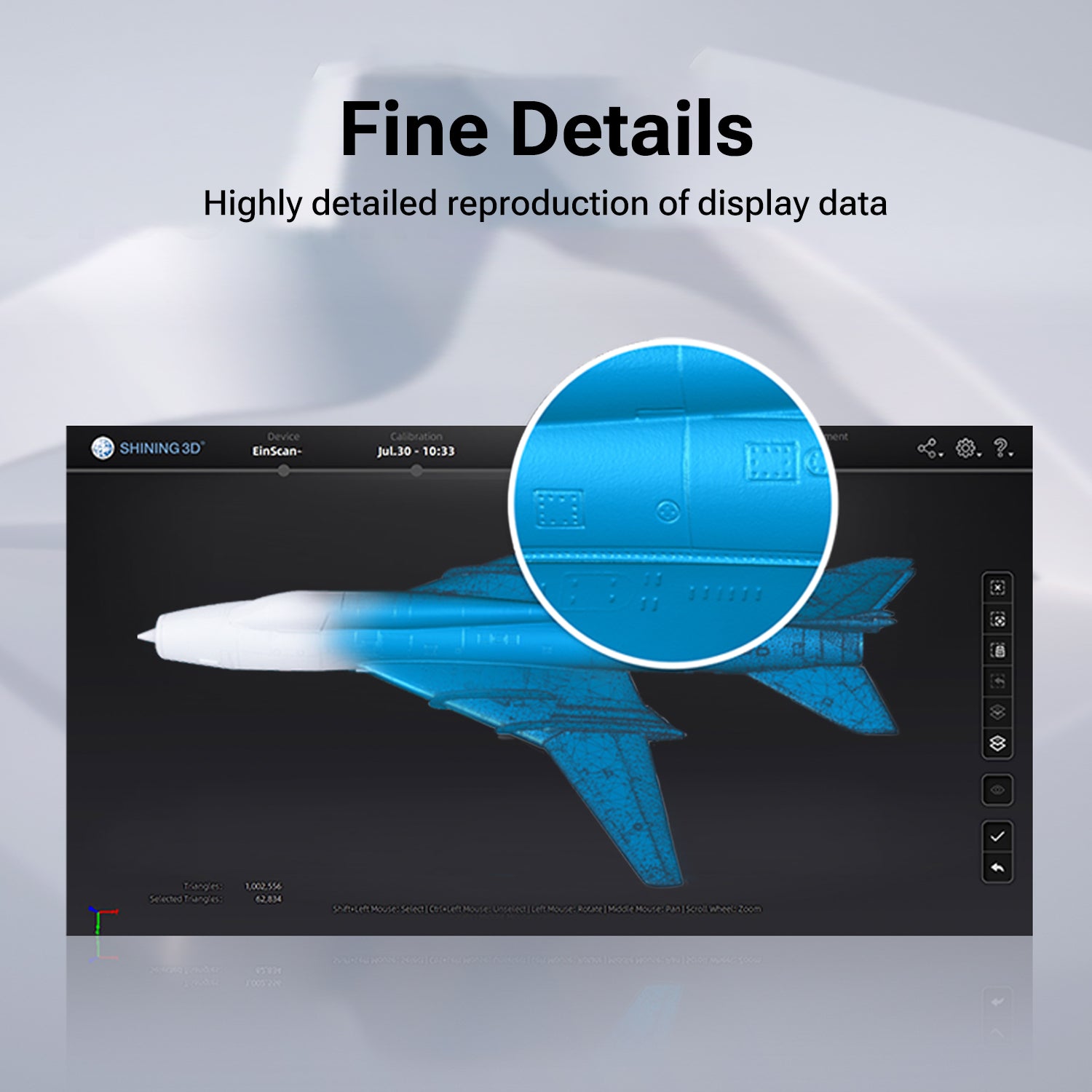

Fine details
Highly detailed reproduction of display data

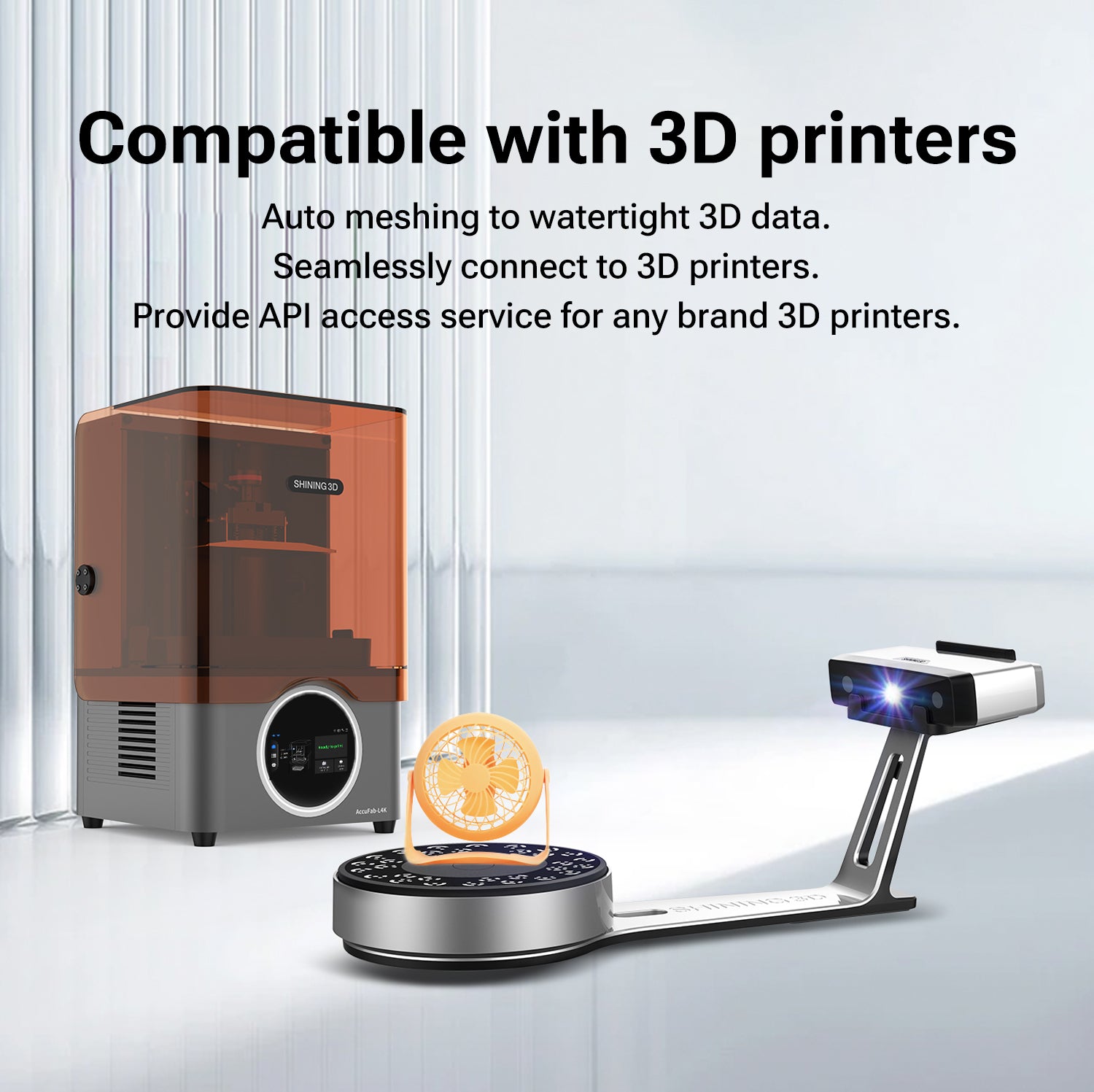

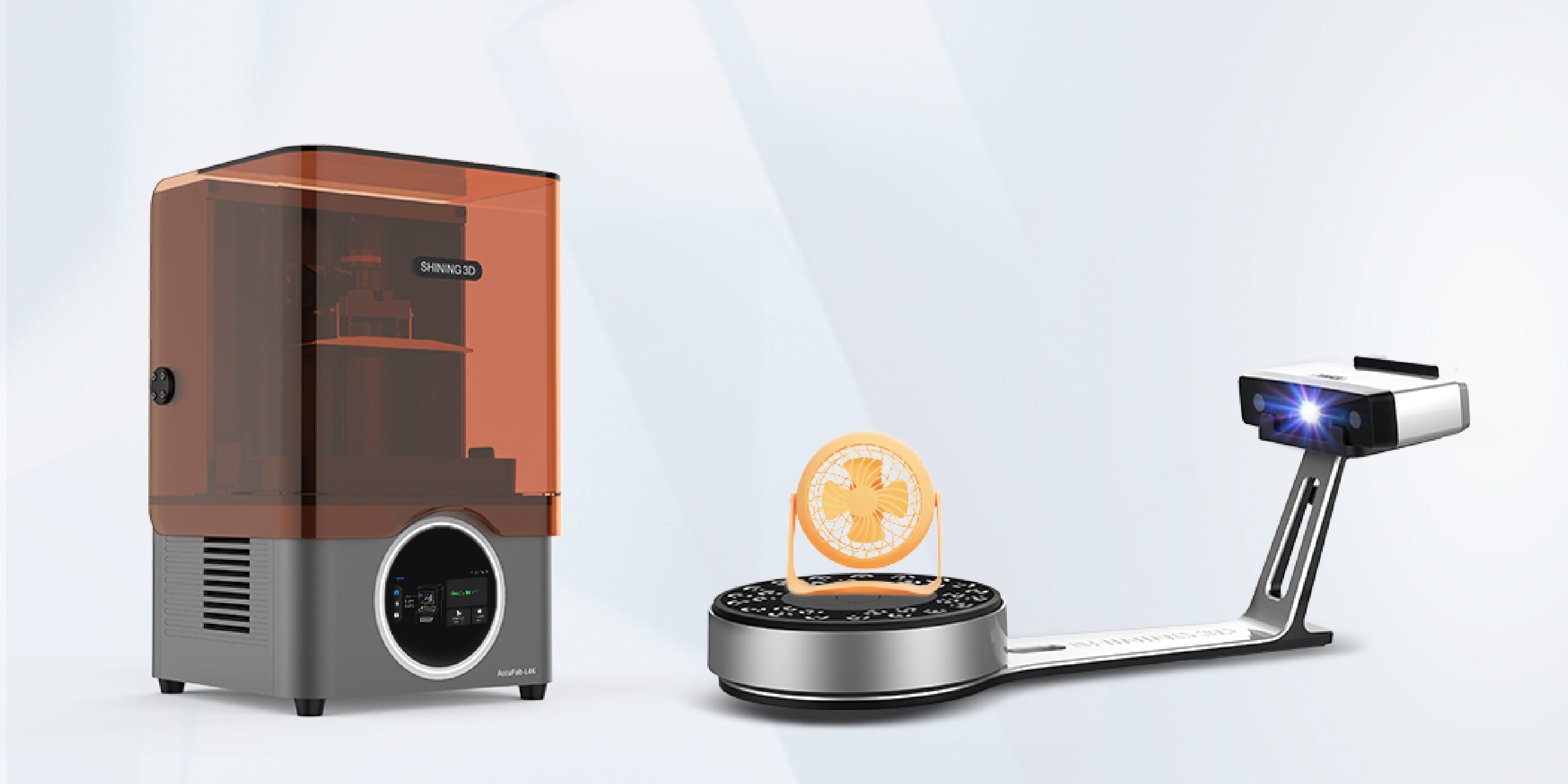

Compatible with 3D printers
- Auto meshing to watertight 3D data
- Seamlessly connect to 3D printers
- Provide API access service for any brand 3D printers.

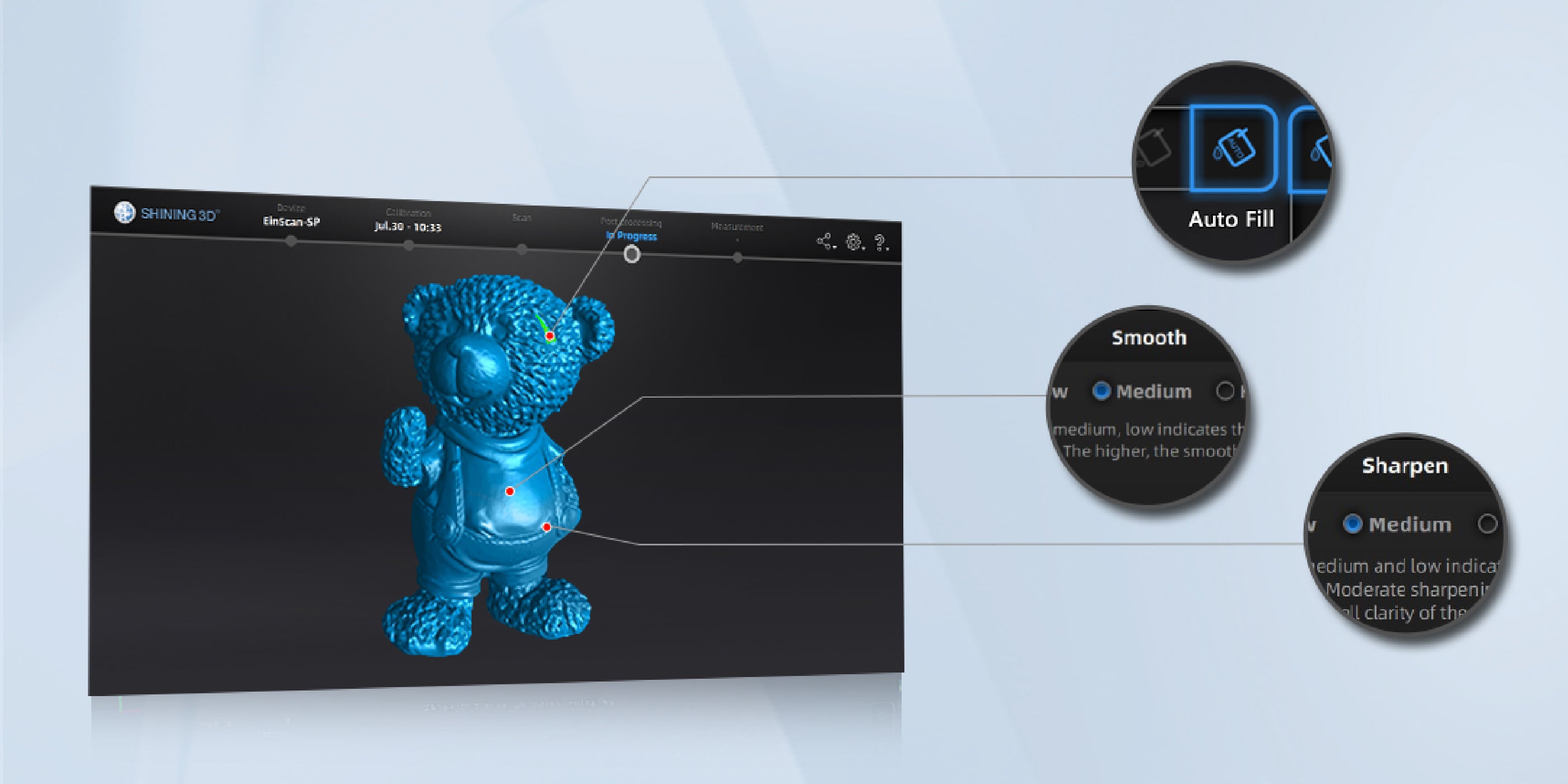

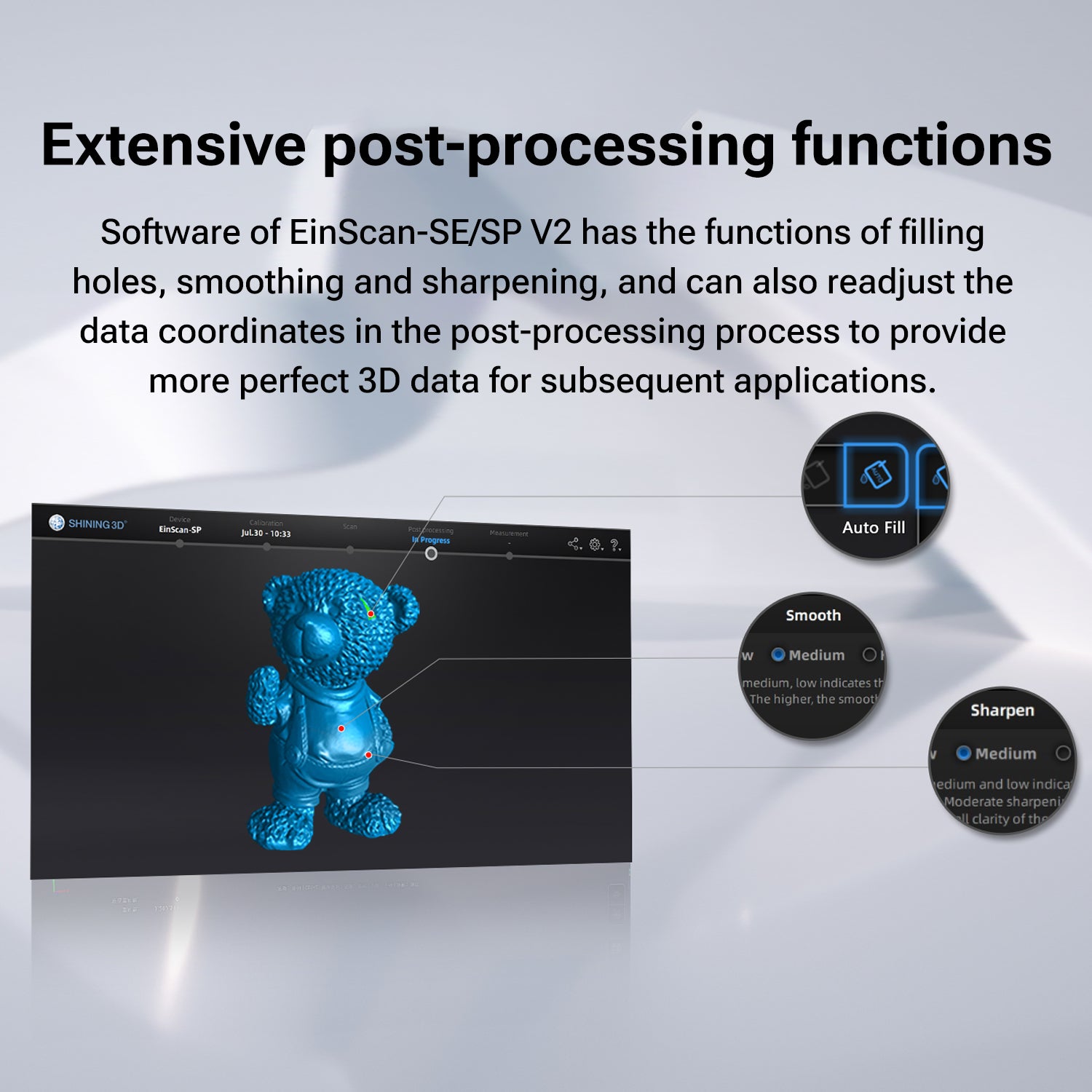

Extensive post-processing functions
Software of EinScan-SE/SP V2 has the functions of filling holes, smoothing and sharpening, and can also readjust the data coordinates in the post-processing process to provide more perfect 3D data for subsequent applications.

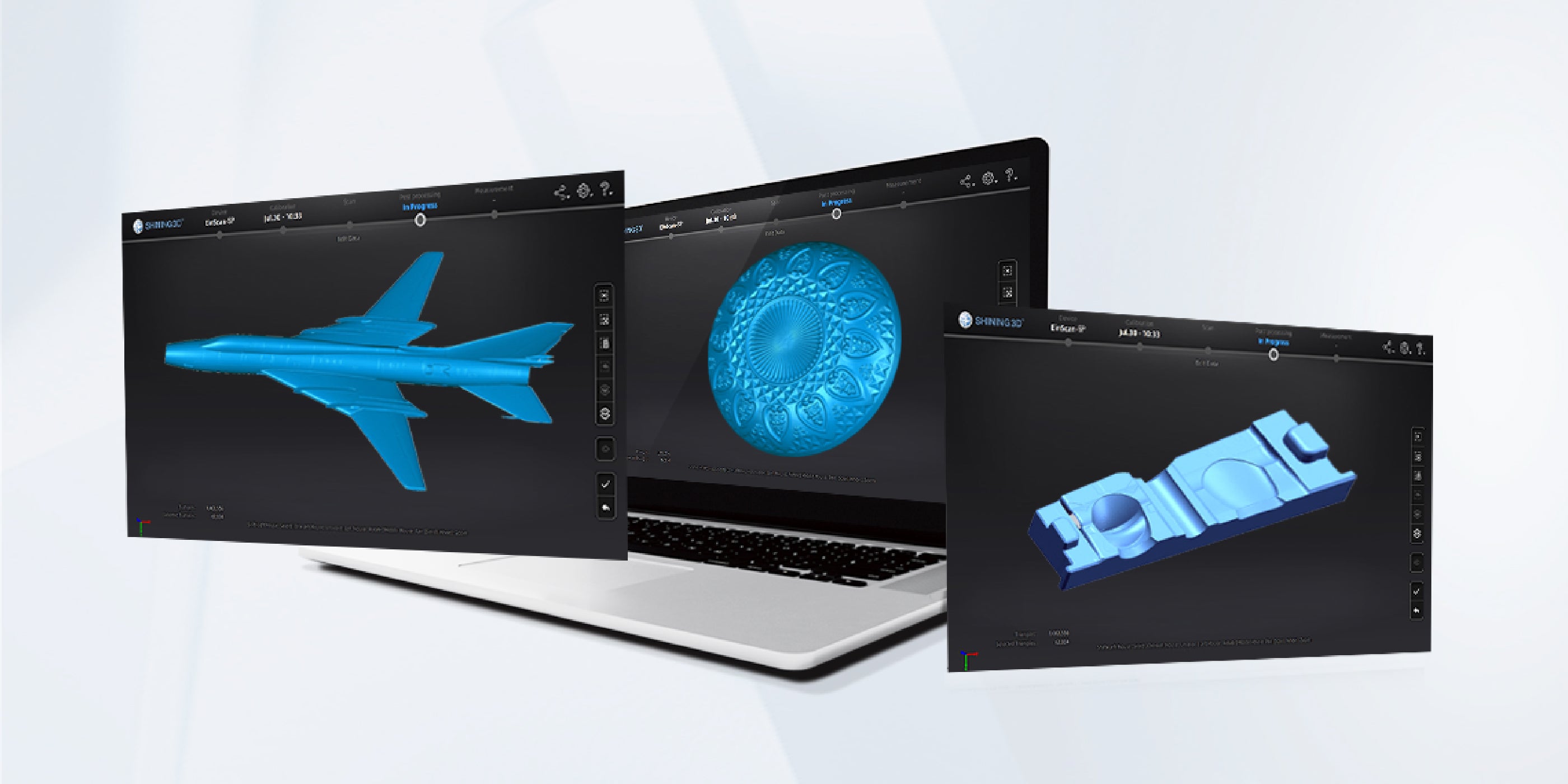

Capable of Reverse Engineering and Design in Office
- Explore fast scanning experience
- Making the high-resolution scanning available to everyone

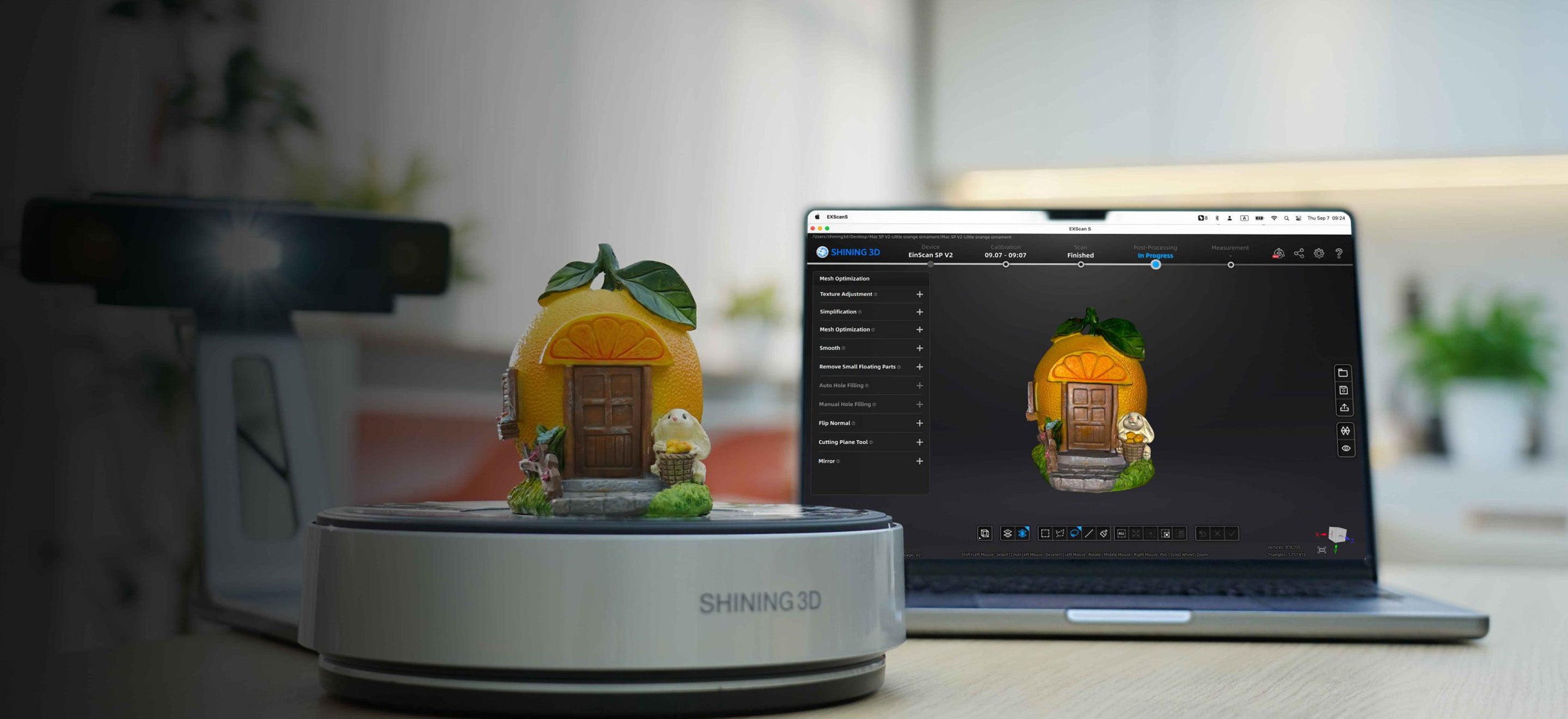

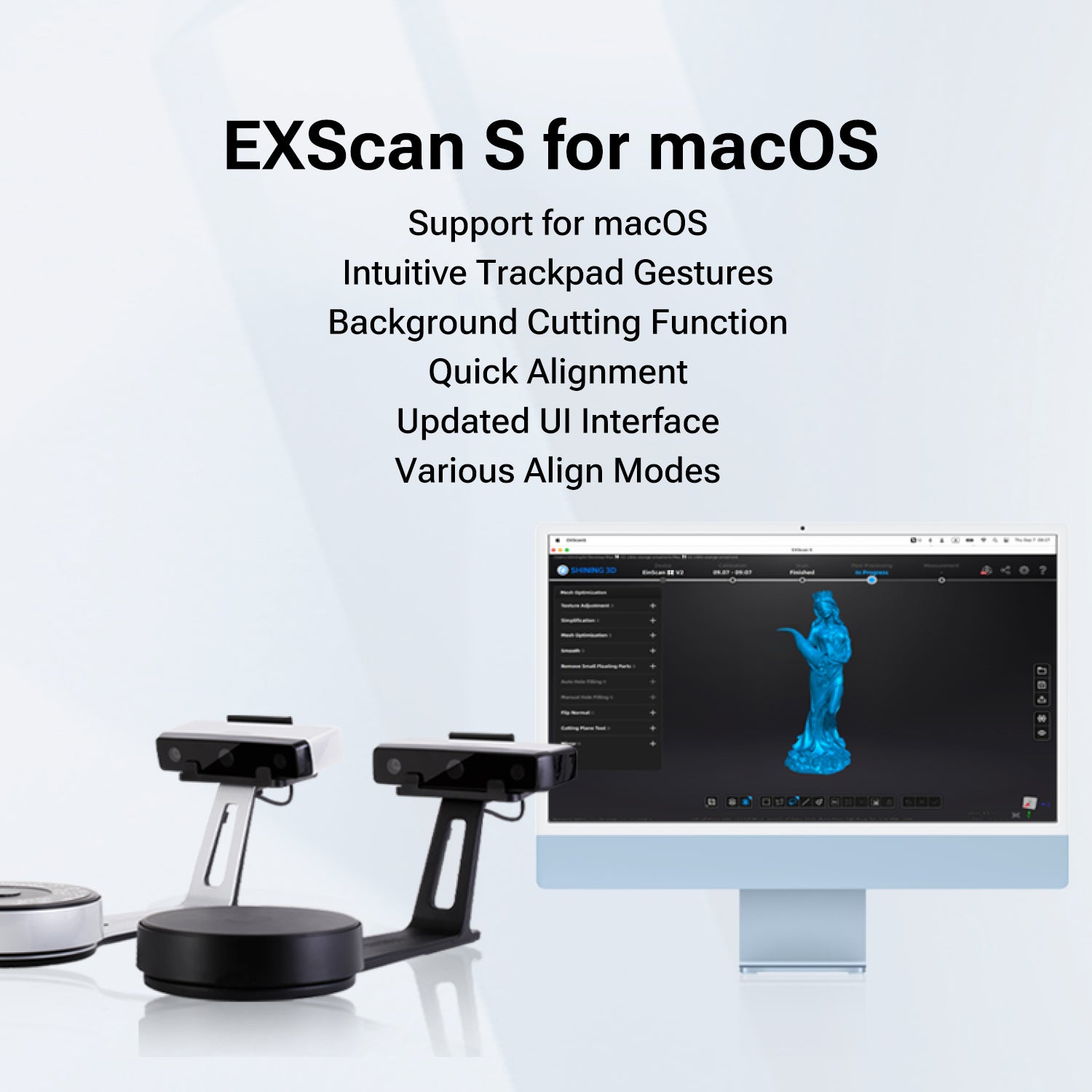

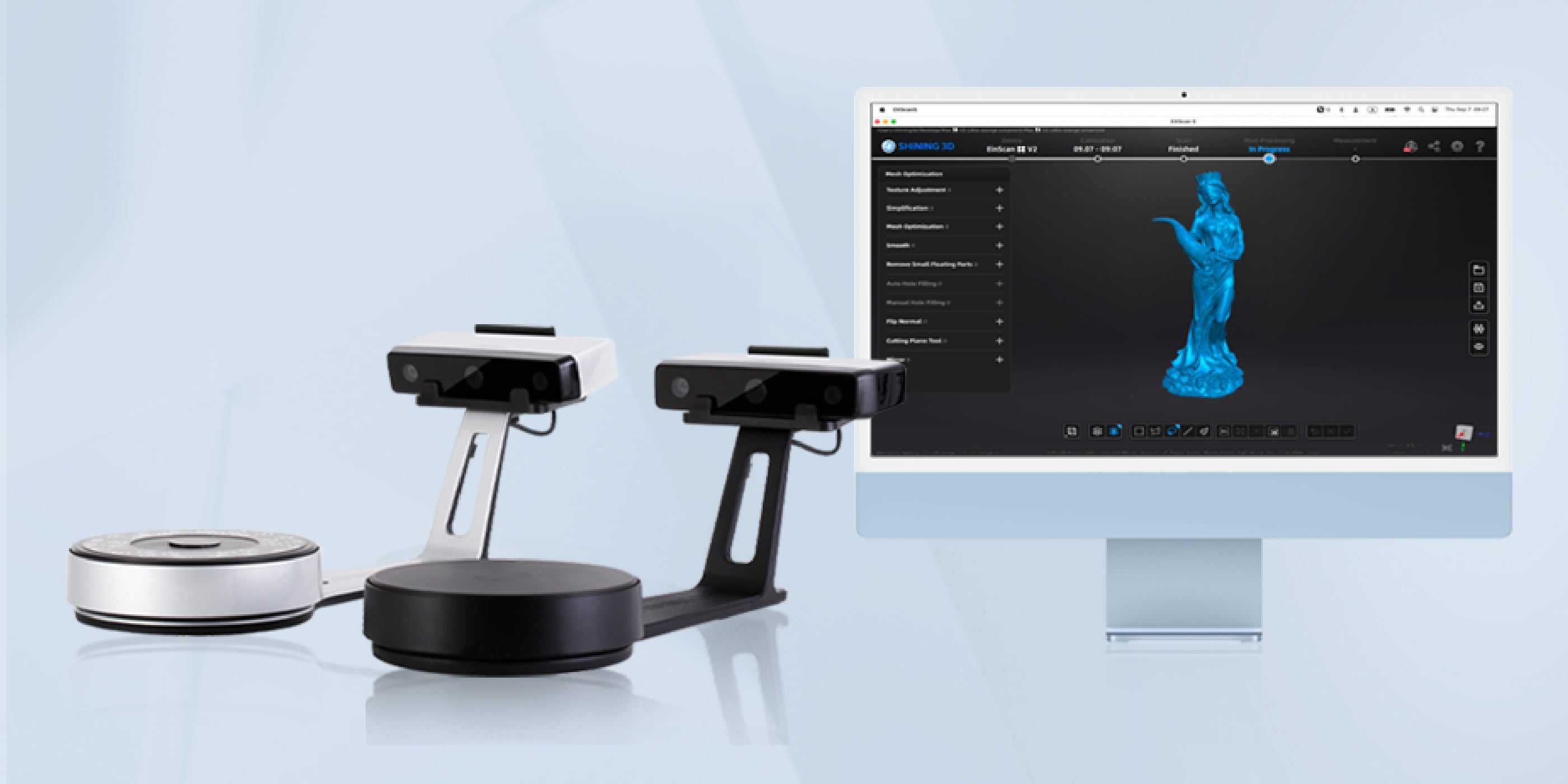

EXScan S for macOS
- Support for macOS
- Intuitive Trackpad Gestures
- Background Cutting Function
- Quick Alignment
- Updated UI Interface
- Various Align Modes
EINSCAN SP V2 Specification
Fixed Scan with Turntable
Fixed Scan without Turntable
With Turntable:Turntable; Feature; Markers; Manual; Turntable Coded Targets
Without Turntable:Feature; Markers; Manual
≤0.05 mm
200×150 mm
With Turntable: 200 ×200×200mm
Without Turntable: 1200×1200×1200mm
30 × 30 × 30 mm
Single Scan<1 s
Turntable<45 s
0.17 mm ~ 0.2 mm
Yes
OBJ, STL, ASC, PLY, 3MF
1.3 Mega Pixels
White LED
290 ~ 480 mm
2.5 kg
USB: 1 ×USB 2.0 or 3.0;
OS: Win 7, 8 or 10 (64 bit);
Graphic Card: Nvidia series;
Graphic memory: ＞1G;
CPU: Dual-core i5 or higher;
Memory: ＞8G
Graphic Card: Independent Graphic Card，NVIDIA GTX660 or higher；
Graphics memory: ＞2 G;
CPU: Dual Core I5 or higher；
Memory: ＞16 G
EXScan S; Solid Edge SHINING 3D Edition
570×210×210 mm
40 w
DC：12 v, 3.33 A
HD
Turntable with coded targets
5 kg
3D Data Gallery
FAQ
Explore the frequently asked questions and answers about our products and services.
Is the scan software free?
Yes. It is totally free and is updated continuously by our committed R&D team. Every update would be friendly and free of charge.
Can I switch languages?
Yes. You can feel free to access up to 8 languages in EXScan S.
Can it work with my MacBook?
Yes! We just released the brand-new version of software which is fully compatible with MacOS.
Can I get colored data?
Yes. EinScan SP V2 is equipped with powerful software that can intelligently capture the complete color of scanning objects.
