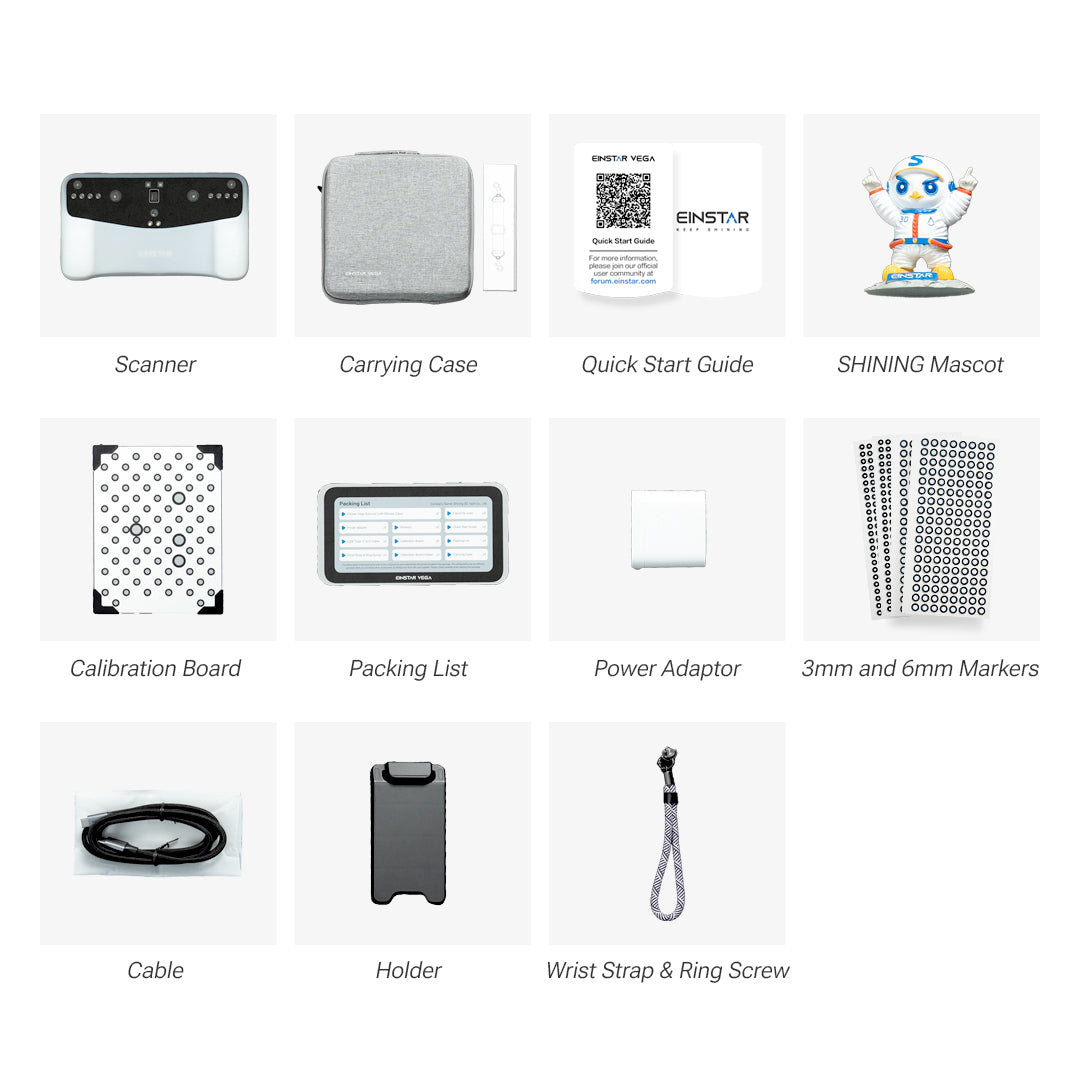

  • Lieferumfang
  • FAQs
  • Broschüre herunterladen
  • Bewertungen
Angebot€2.399,00 EUR

EINSTAR VEGA – Kabelloser All-In-One-3D-Scanner

Angebot€2.399,00 EUR

inkl. MwSt. Versandkosten werden an der Kasse berechnet


icon
ALL-IN-ONE System
icon
Two 3D Scanners in One
icon
Wireless Solution
icon
Smooth Scanning at Any Time
icon
Powerful Hardware
icon
Coverage from small to large objects

Add To Cart Buy it Now
Bezahlen Sie bequem
American Express Diners ClubDiscoverGoogle Pay JCBMaestroMastercardPayPalUnion PayVisa
Vertrauenswürdige Lieferung
icon

Schauen Sie genauer hin

Intelligentes 3D-Scanning-Terminal mit Mobile Computing

Zwei 3D-Scanner in einem

Abdeckung von kleinen bis großen Objekten

Starke Anpassungsfähigkeit an die Umgebungsbeleuchtung

Drahtlose 3D-Scanlösung

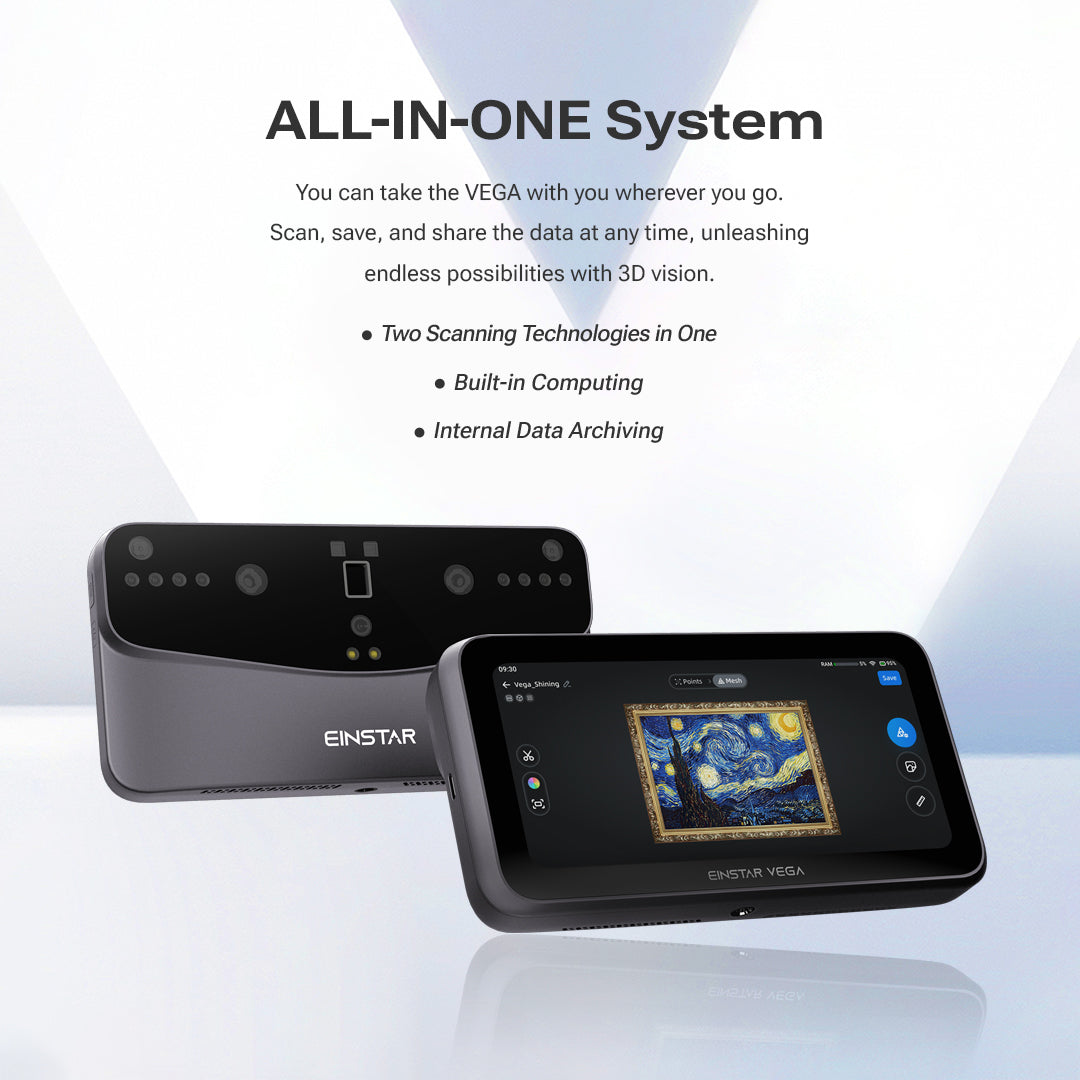

Komplettsystem

  • Zwei Scan-Technologien in einer
  • Integrierte Computer
  • Interne Datenarchivierung

Zwei 3D-Scanner in einem

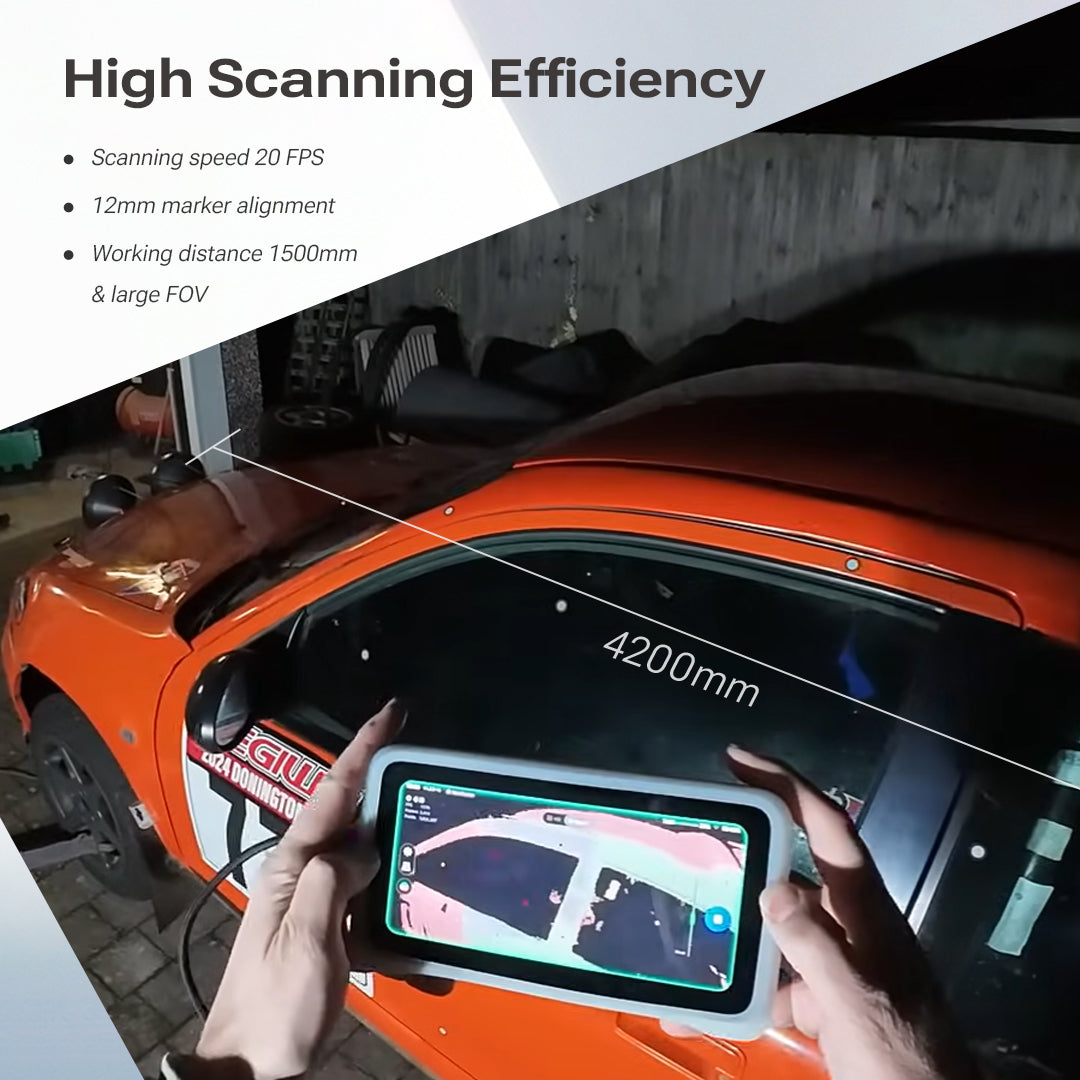

  • VCSEL für Langstreckenscans

Reibungsloses Scannen unter unbegrenzten Bedingungen

  • MEMS für Nahbereichsscans

Stabiles Scannen für hochdetaillierte Daten

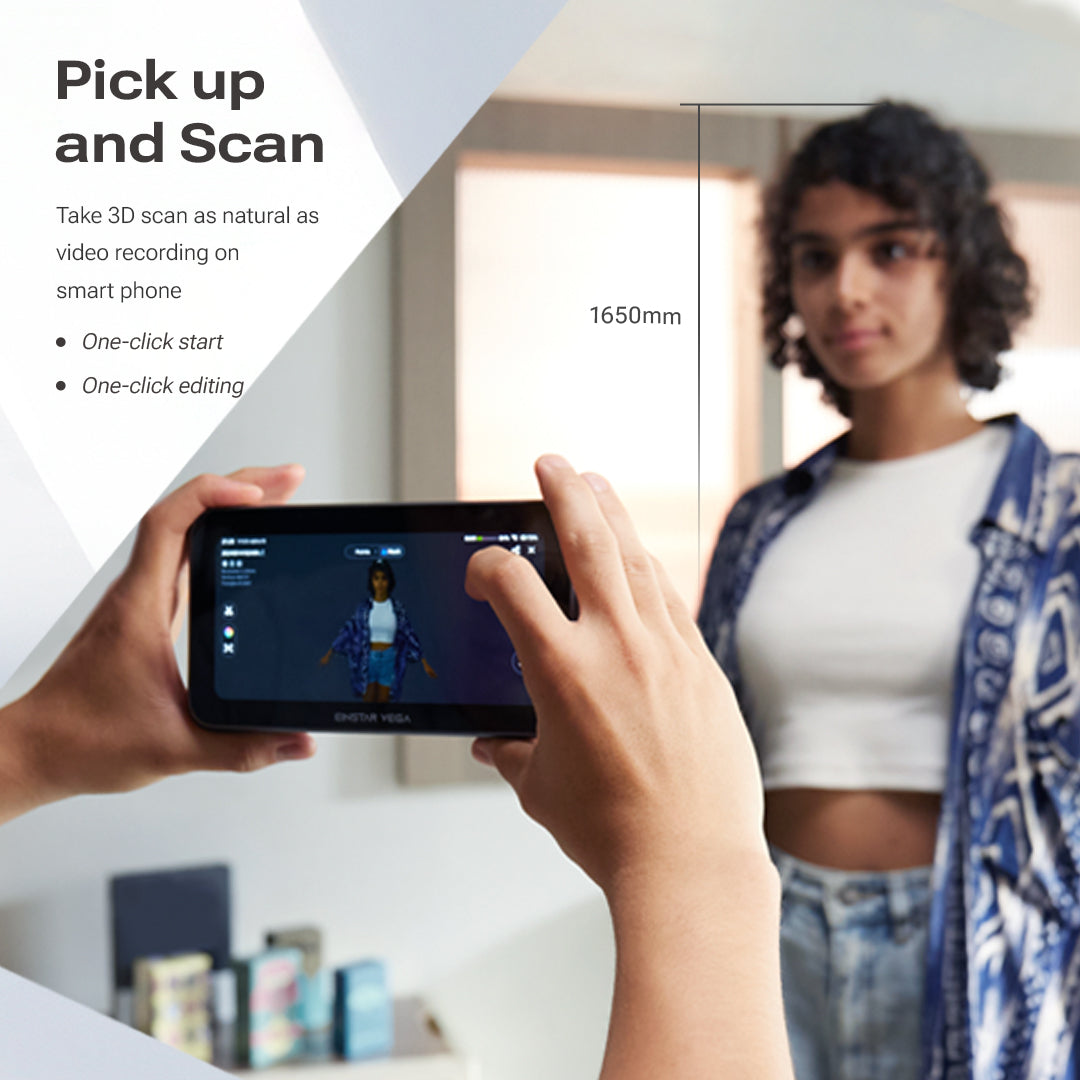

Aufnehmen und scannen

  • Ergonomisches Design
  • Leichtgewicht 535g
  • Ein-Klick-Start

Weitere Ausrichtungsmodi

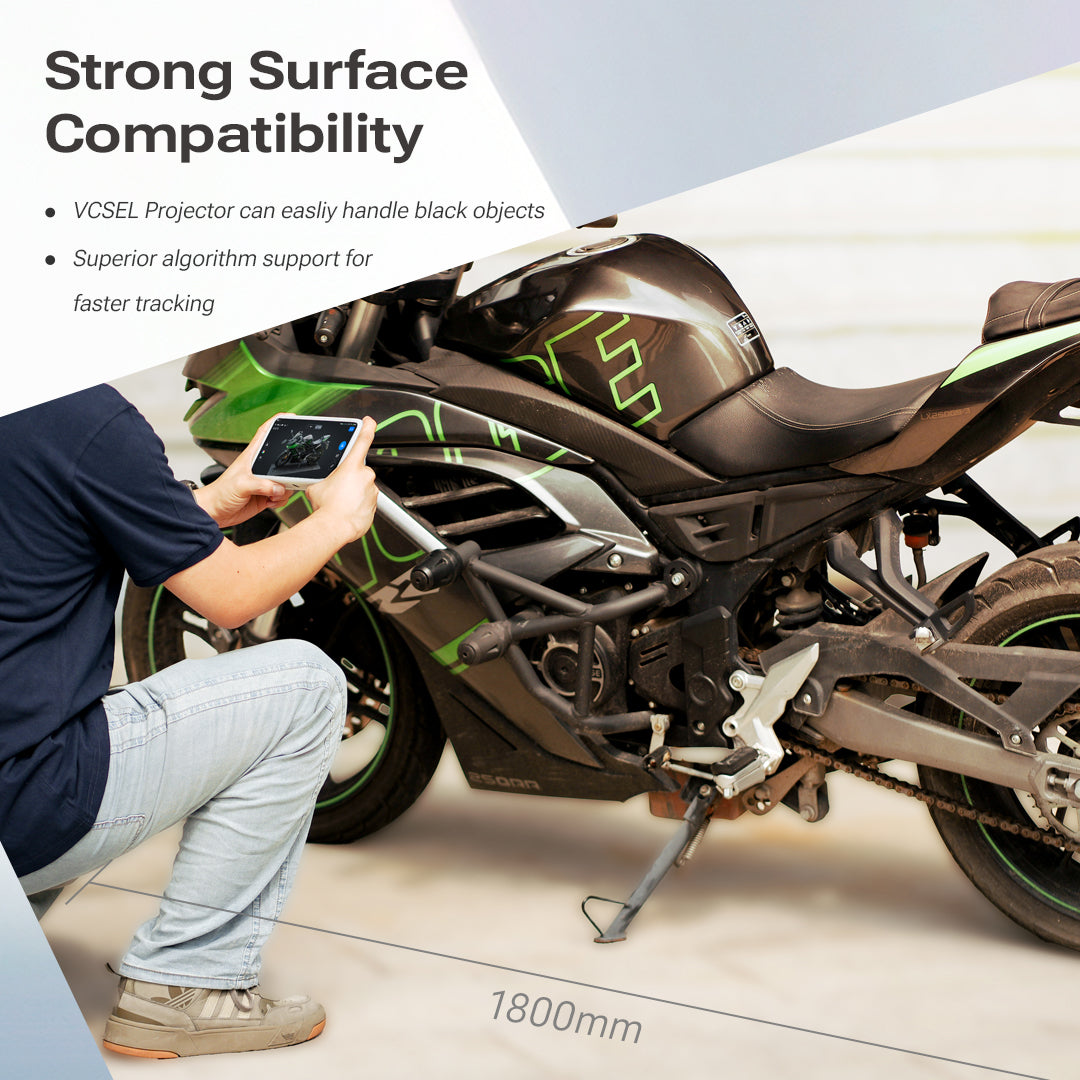

Über Standardmaterial hinaus

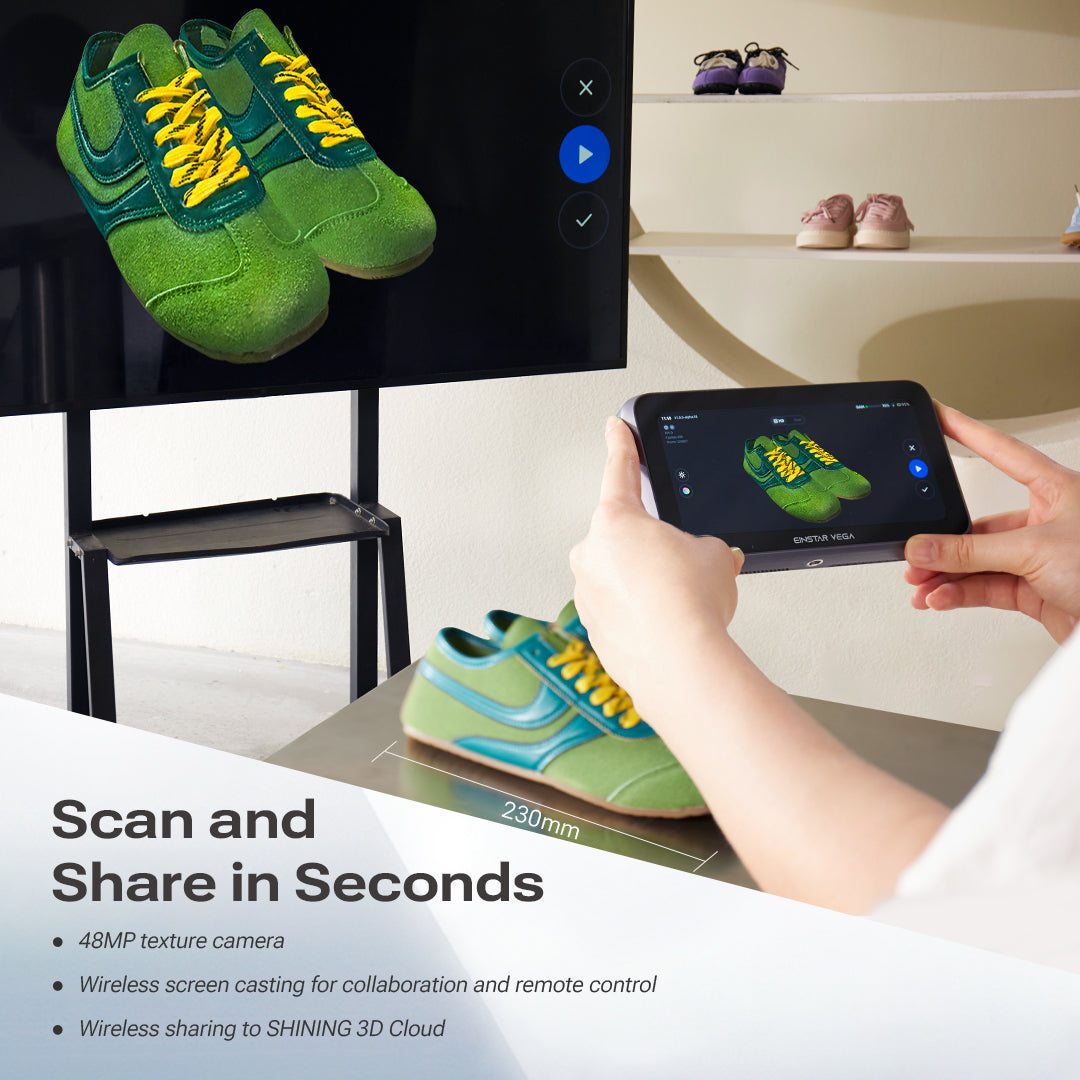

48-Megapixel-RGB-Kamera für lebensechte, nie verblassende Farben

Vor

Nach

Ziehen

Bester Partner für Anfänger

Ein-Klick-Start

Ein-Klick-Verarbeitung

Koordinatensystemanpassung

Modellmessung

GLÄNZENDE 3D-Wolke

EINSTAR VEGA Spezifikation

Scan-Modus

HD-Modus
Schnellmodus

Lichtquelle

HD-Modus: Infrarot-MEMS
Schneller Modus: Infrarot-VCSEL

Punktentfernung

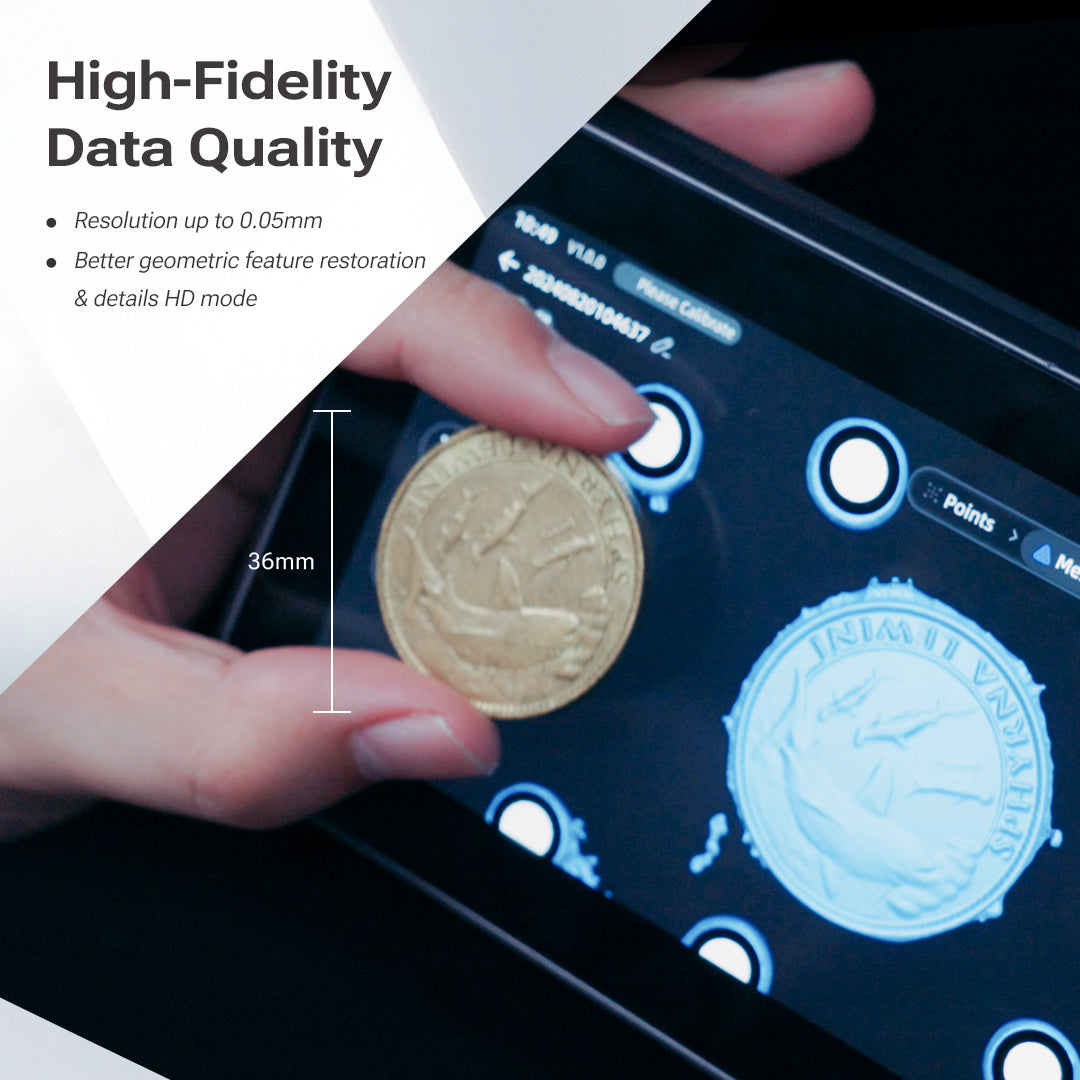

HD-Modus: 0,05 mm ~ 3 mm
Schnellmodus: 0,5 mm ~ 10 mm

Frame erfassen

HD-Modus: bis zu 15 fps
Schneller Modus: bis zu 20 fps

Arbeitsabstand

HD-Modus: 100–300 mm
Schnellmodus: 350–1500 mm

Auflösung der IR-Kamera

HD-Modus: 2 MP
Schneller Modus: 1,3 MP

Ausrichtungsmodus

Merkmal; Textur; Markierungen; Hybrid

Farbkameraauflösung

48 Megapixel

Anwendung
Anleitung für EINSTAR VEGA-Benutzer: Wie sie Objekte aktivieren, kalibrieren und effektiv scannen, Mesh-Daten teilen und die Software für optimale Leistung aktualisieren.
Erweiterte Anleitung
Bieten Sie EINSTAR VEGA-Benutzern professionelle Anleitungen zum Scannen menschlicher Körper, schwarzer Objekte und anderer anspruchsvoller Objekte.

Häufig gestellte Fragen

Download

Get the latest software and user manuals for your device here.

Download

Customer Reviews

Based on 36 reviews
72%
(26)
25%
(9)
3%
(1)
0%
(0)
0%
(0)
S
Sebastian Webb

The scanner has gotten remarkably better with software updates however the PC software is still a little disappointing and doesnt have all the features the the original Einstar does, I hope this will change in the future

B
Brandon
Worth the price point.

This is actually one of the best 3-D scanner that I have purchased. I purchased a very high-end one and a lower tier than this one I found that the quality of this was well worth the price.

M
MAYAman
Shining 3D Vega is making it easier for me to make money.

I started 3D scanning about a year ago. I originally purchased the Einstar and it worked fantastically for me. But I always hated setting it up with my laptop when I'm on the road. I created a mobile case that had power supplies, and added an ergonomic handle and a PVM screen to it so that it would make my workflow easier. I also bundled the cables with a cable sleeve. This worked great for months, but it was still a bulky and cumbersome solution, especially when on the road. Without the PVM monitor I would have to look at the laptop screen which is a pain in the butt.When Shining 3D announced the Vega I was going to purchase one immediately but still couldn't afford it. I finally was able to afford it last month and have been using it now for 2 weeks. It's been a revelation. No more laptop, no more having to look at the laptop screen. No more cables!!! I was amazed at the build of the thing, I thought it would be plastic but it's actually a single machine piece of aluminum, which is kinda crazy. It feels like a quality electronic like an iPhone. Nice job Shining 3D. The screen in bright and very clear.It comes in a really nice case along with a power brick, a braided USB cable, some markers and a silicone case already mounted to the device. A pro tip here, make sure to buy the official Shining 3D tripod for the Vega, it's all metal and very handy for holding the device while scanning. You can scan without it but it's much clumsier and your fingers always get in the way of the sensors if you have big hands. So yeah, the tripod is a no brainer.Functionally the Vega is very similar to the Einstar so it gives you really great scans on large items like cars, engines, bikes, etc. But the FOV is larger which coupled with the large screen, no cables makes scanning infinitely easier. I can't stress this enough, it's much easier to scan and to continue scanning because it's just more comfortable.The main differentiator of the Vega is that now you're able to scan very small items. The Einstar had a very tough time if not able to scan smaller items without great difficulty. The Vega is much easier at this task. Another pro tip when scanning smaller items is to put a towel under the items you are scanning. For instance I was scanning some headlight cluster surrounds and had them on my table. It was creating an infinite plane that any scanner has issues with. Once I put a towel under the item the scanner picked up the towel and then saw the light cluster as part of the towel.Since this is a prosumer scanner you will still need to prep your items properly for best results. I use AESUB scanning spray. The white, blue and orange. Each of them has a different time of evaporation and I use them accordingly based on what I am going to scan. While the spray may seem expensive trust me that you'll thank me later, it makes scanning infinitely easier and more accurate. A lot of the complaints I see from people who say they can't scan properly haven't prepped their surface.A second recommendation for those who are going to scan autos or bikes is to get some of the 3D pyramid scanner targets that are magnetized and use those as well as the Blue AESUB scanner spray since it evaporates in 4 hours.So I really love this thing, like really. LOL But there are some things I don't like. Firstly there is no way to transfer your files over Wifi! This is a huge oversight in my opinion. You must connect your Vega to your PC and then transfer the files that way. Missed opportunity to make the device even better. Not sure if this can be updated in a software update, but Shining if you're listening please enable wireless transfer of my projects viaSecondly the battery life could be better, but I turn down the screen brightness when I'm scanning indoors. I solved this also with a quality batter bank so now I can scan for a couple hours without any disruption. I use the included USB cable and put the power bank in my back pocket. Works great.So basically you'll obviously see I love this thing. I have used higher end scanners and you can get better results for sure but those scanners are 5k, 10k, or higher. With the Vega you basically have a mobile scanning studio you can fit in a little camera bag and get results that are good enough for me to load into Fusion or Blender and reverse engineer anything I was. Remember to get the Shining 3D tripod, it's kind of a pain in the a** to scan without it.Hope this helps all you cottage makers out there. :)

R
RAM
Easy learning, it's done noyhing but AMAZE me

This is my first scanner so I have not experience to compare but it's been fairly intuitive, well build, and it just looks cool!

O
Overlander
Einstar Vega Awesome scanner

Why did you pick this product vs others?:I think einstar have a better quality of scanner compare to others . After unboxing and did the update I can't wait to scan the car . After the first try wow it was fast compare other scanners . Without spray or reflective dot directly scan without any issue . The video will show everything very quality product for the price you can't beat it thank you einstar for an awesome 3d scanner . Can't wait to do more scanning only take me less than 10min to scan the front wow unbelievable speed on this scanner .?Ease of use:Super easy to operate?Speed:Great and fast scanner capture with no issue?Value for money:price is super reasonable?Build quality:quality of the product is fantastic like an iPhone very tough?Functionality:easy to operate and fast
