EINSTAR VEGA- Unleash Your 3D Vision

Sale price€1.999,00 EUR

icon
ALL-IN-ONE System
icon
Two 3D Scanners in One
icon
Wireless Solution
icon
Smooth Scanning at Any Time
icon
Powerful Hardware
icon
Coverage from small to large objects

Weight: 535g;

Enclosure:  Magnesium Alloy Titanium Gray;

Shipping starts from October 10th.


Color: Titanium Gray
Add To Cart Buy it Now
Pay with Ease
PayPal
Trusted Delivery

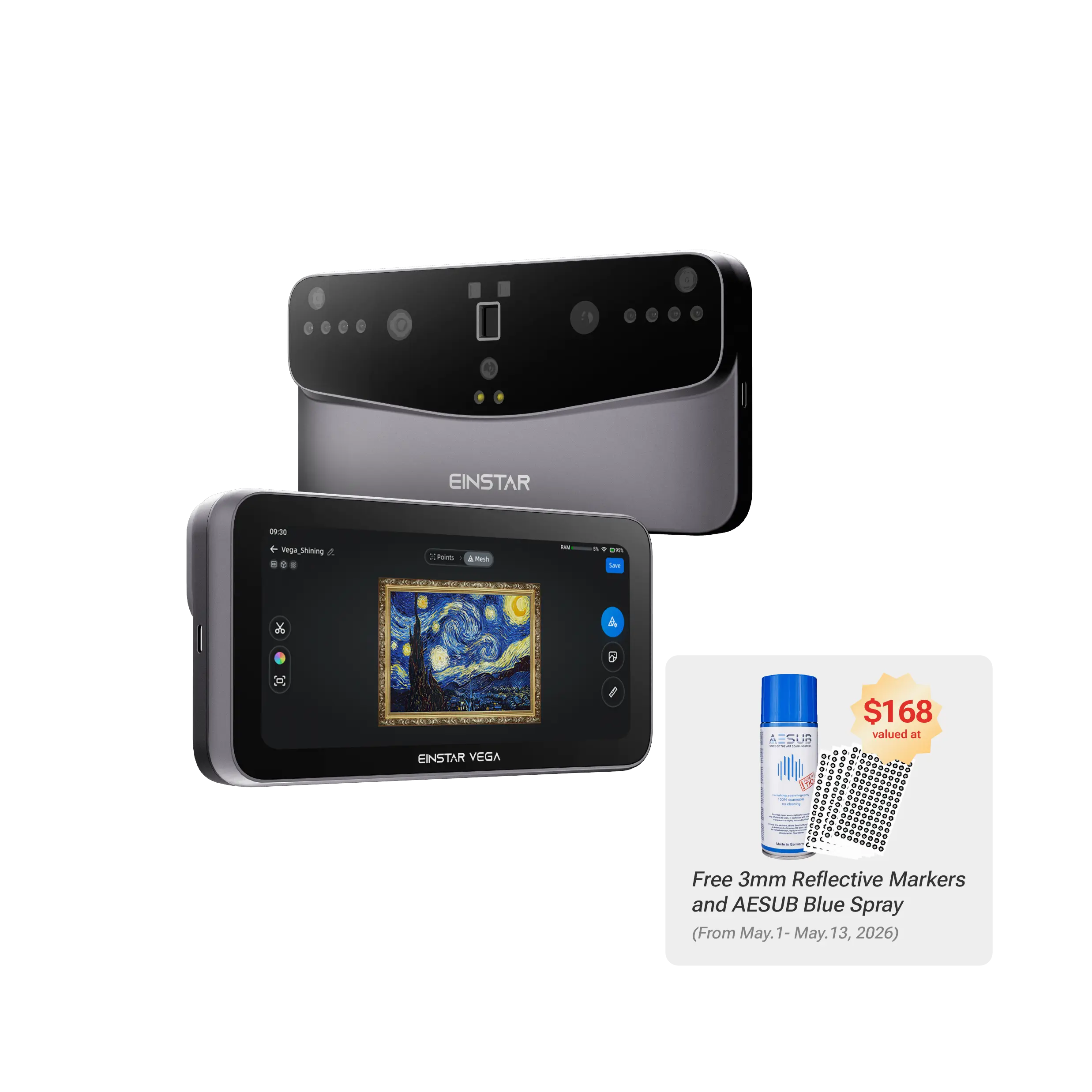

EINSTAR VEGA

Unleash Your 3D Vision

ALL-IN-ONE System

  • Two Scanning Technologies in One
  • Built-in Computing
  • Internal Data Archiving

Two 3D Scanners in One

  • VCSEL For Long Range Scanning

Smooth Scanning under Unlimited Environment

  • MEMS For Short Range Scanning

Stable Scanning for High-Detail Data

Pick Up and Scan

  • Ergonomic Design
  • Lightweight 535g
  • One-Click Start

Wireless Solution

  • Wireless Scanning -- Without Connecting to PC
  • Wireless Transfer -- Data Sharing to SHINING 3D Cloud
  • Wireless Projection -- Display on a Second Screen

Comprehensive Object Scanning

HD Mode

  • For small to medium size objects
  • Working Distance 100~250mm for small objects
  • Scanning Speed Up to 15fps

Comprehensive Object Scanning

Fast Mode

  • For medium to large size objects
  • Working Distance 350~1500mm for medium to large objects
  • Scanning Speed Up to 20fps

Beginner-Ready Design

One-Click Editing

Automatic Configuration Selection, Efficiency Improvement.

Powerful Hardware

  • 6.4 Inch 2K AMOLED
  • 32 RAM
  • 32GB eMMC + 512GB SSD
  • 48MP RGB Texture Camera
  • Continuous Operation During Charging

PC Software Starvision

Compatible with Windows and Mac OS

SHINING 3D Cloud

  • Data Sharing and Collaboration
  • Data Storage and Management
  • Data Measurement
  • Free 5GB space to each SHINING 3D user

Reliable Scanning Outdoor and Indoor

  • Outdoor Scanning under Sunshine
  • Ideal for Dark Surfaces

Smooth Scanning at Any Time

Scan at Night Without Limitation

EINSTAR VEGA Specification

Scan Mode

HD Mode
Fast Mode

Light Source

HD Mode: Infrared MEMS
Fast Mode: Infrared VCSEL

Point Distance

HD Mode: 0.05mm~3mm
Fast Mode: 0.5mm~10mm

Capture Frame

HD Mode: up to 15 fps
Fast Mode: up to 20fps

Working Distance

HD Mode: 100-250mm
Fast Mode: 350-1500mm

IR Camera Resolution

HD Mode: 2MP
Fast Mode: 1.3MP

Align Mode

Feature; Texture; Markers; Hybrid

Color Camera Resolution

48 MP

How To Use
Guiding EINSTAR VEGA users on how to activate, calibrate, and effectively scan objects, share mesh data, and update the software for optimal performance.

FAQ

Brochure Download

Customer Reviews

Based on 2 reviews
50%
(1)
0%
(0)
50%
(1)
0%
(0)
0%
(0)
J
Jani
Pretty ok but has issues

I'm not entirely happy with the purchase process(barely helpful pre-sales support, price is without VAT, preorder customers pay extra for shipping, no receipt for the preorder coupon, etc...) but my first impressions of the product weren't too bad.

The battery does not last nearly as long as the advertised 2 hours. The scanner feature seems to be active all the time when screen is on, so that probably uses battery a lot. Also I noticed that it runs out of battery very fast even when the screen is turned off. So if you want to take a 30min break, you more or less have to turn the device off unless you have the charger nearby.

Judging from the top bar and pull-down quick access menu I think the device seems to run on some modified version Android. That itself isn't really bad or good in my book but I found it amusing that I could tell right away.

The scanner "app" itself is pretty simple and polished. It has a few quirks and some confusing things UI/UX-wise but all in all not too bad, especially if Einstar continues work on it.

Scanning quality seems pretty good at least. The only real problem I had was the scanning distance. I was scanning my project car's engine bay and I was constantly getting warnings about being too close or too far.

It would've also been beneficial to have an integrated projector that lights up the device's field of view so I'd know what I'm actually pointing at.

For the performance and issues I've encountered, I feel the reduced preorder price I paid was still a little on the high side but I'm keeping the scanner. Einstar has done at least the bare minimum to make a decent product, but I'm afraid they need to do more to earn any brand loyalty.

I'd cautiously recommend the scanner if you know what you're getting into. For <2000€ there are a lot of options available.

T
Tomasz
It's like the Einstar. But portable. And better.

I really like this device. It feels well made, other "portable scanners" feel like a toy next to the Vega. Scans come out nice and tracking is better than Einstar. Software has some quirks but I trust it will get better over time, Shining3D has a proven track record of supporting their products.
